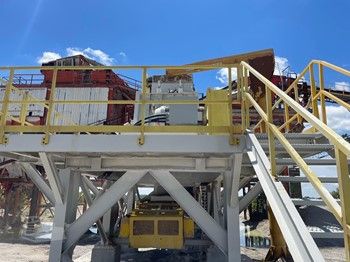

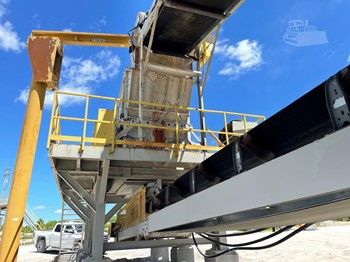

1989 CEDARAPIDS 5064 HSI

Description

* Unit is on the ground

• Large feed opening

• Hydraulically raised front section for ease of accessibility

• Simple wrench adjustment of breaker plates

• Massive backer bar with replaceable insert bar

• Simple quick impeller bar repositioning and replacement

• 4" high chrome impeller bars have four wear sides for maximum service life

• Dual locking impact bar wedge system

• Cast manganese monoblock primary apron

• 3" thick high chrome breaker apron liners on secondary apron

• Interchangeable breaker apron liners

• Interchangeable frame liners

• Easily replaceable, adjustable stripper bar

• Balanced, high strength, high inertia open disc type rotor

• Large spherical roller bearings, hydraulically removable, with taconite type labyrynth seals

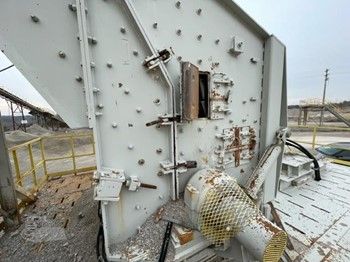

• Inspection doors for all critical areas

• Large, clear discharge opening

• Left hand drive

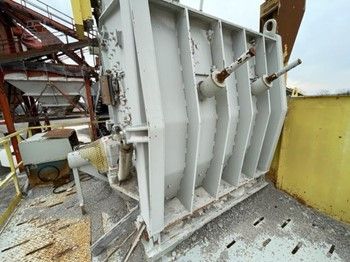

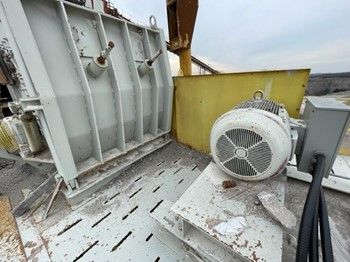

• 5064 Horizontal Shaft Impactor

• Hydraulic assist for apron adjustment

• Max feed opening: 43-¼" x 64-¾"

• Discharge Opening: 65-5/8" x 64-¾"

• Max feed size: 12"-22"

• Rotor speed: 350-610 rpm

• Tonnage: 250-400

• Horsepower: 300-400
