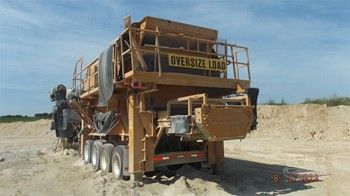

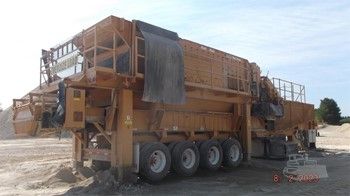

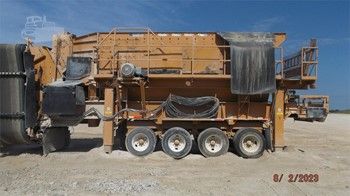

2010 HAZEMAG APS1315

HAZEMAG | APS1315

USD $362,500

Product Location: Little Chute, Wisconsin 54140

24" structural steel wide flange chassis with quad rear spring suspension axle, air brakes, stop and turn lights, and mud flaps

6 point "Run-on" hydraulic leveling system with 11HP Honda power pack.

Impactor inlet size 34" x 60, rotor diameter 52", rotor width 60", 4 rows of heavy duty blow bars

400 HP 1200 RPM electric motor with drive and drive guards

Hydraulically adjustable curtains with Hazetronic controls

JCI Model 7203-38LP triple deck horizontal screen with single crown decks

Triple shaft with 50HP, 1200 RPM electric motor with drive and drive guards

48"x21' under crusher side discharge conveyor w/4' long impact bed, 3 ply belting, 10 HP, 1800 RPM electric motor with drive and drive guards

60" wide under screen conveyor with 3 ply belting, 15 HP 1800 RPM electric motor with drive and drive guards

30"x12' 2nd deck overs cross conveyor with 3 ply belting, 7.5 HP, 1800 RPM electric motor with drive and drive guards

Plant control cabinet, NEMA 4, with main disconnect, starters, and controls for all plant mounted motors, 3/60/460.

;
