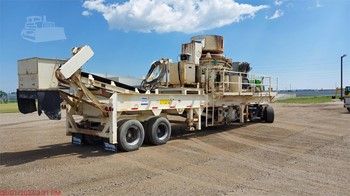

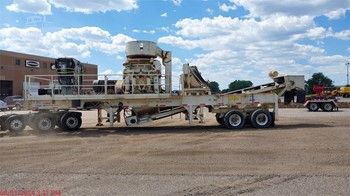

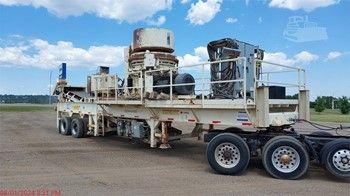

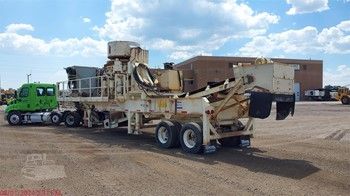

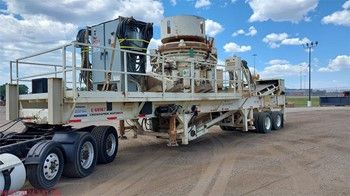

2011 CEDARAPIDS MVP380X

Description

CEDARAPIDS MVP380XRD CONE CRUSHING PLANT EQUIPPED PER THE BELOW:

- HIGH EFFICIENCY - HEAVY DUTY ROLLER BEARING DESIGN

- HEAVY DUTY CAST STEEL BASE FRAME WITH REPLACEABLE WEAR LINERS

- FULLY GUIDED (DUAL ACTION) TRAMP RELIEF SYSTEM - INSTANTLY RESETS CRUSHER

SETTING WHEN TRAMP MATERIAL IS PASSED

- HYDRAULIC POWERED - THREADED UPPER ASSEMBLY FOR QUICK CRUSHER SETTING

ADJUSTMENTS UNDER LOAD

- LUBRICATION OIL FLOW SAFETY SWITCH AND WARNING HORN (115 VOLT)

- ENCLOSED HYDRAULIC SKID WITH 10HP (1.5KW) MOTOR. PROVIDES POWER AND CONTROLS

FOR TRAMP AND SETTING ADJUSTMENT SYSTEMS

- HIGH FLOW MANIFOLD WITH (5 EA), 5 GALLON ACCUMULATORS - PROVIDES REDUNDANT

CYLINDER PROTECTION

- PINNED CYLINDER ENDS REMOVE QUICKLY FOR FAST CONE SEPARATION AND MANGANESE

CHANGE

- SEPARATE LUBE MODULE WITH 2HP (1.5KW) ELECTRIC LUBE PUMP AND FILTER. CAN BE

LOCATED REMOTELY

- CRUSHER HOPPER

- CRUSHER TOOLS: LIFTING EYE, MANTLE WRENCH

- OIL HEATER 115 VOLT IN SUMP

- INTERCHANGEABLE BETWEEN STANDARD AND FINE CHAMBERS

- OPERATION AND MAINTENANCE MANUAL INCLUDING A C & S SAFETY MANUAL

- MANUAL RLC (RELAY LOGIC CONTROL) PUSH BUTTON CONTROL PANEL (115 VOLT) WITH

10' TETHER

- NON-FERROUS THREAD INSERTS AND VEE SEAT LINERS FOR WEAR RESISTANCE

- HEAVY DUTY 2" DIAMETER CLEVIS BOLTS

- TOSHIBA 300 HP CRUSHER DRIVE MOTOR

- COUNTERWEIGHT GUARD

- TANDEM AXLE CHASSIS WITH 42" REAR DISCHARGE CONVEYOR

- (4) 24" STROKE 70,000 # CAPACITY SET UP LEGS-12 VOLT

- CONE OVER FLOW CHUTE

- COARSE LINER-MEDIUM MANTLE
