2012 SANDVIK QJ341

Description

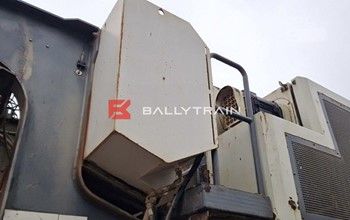

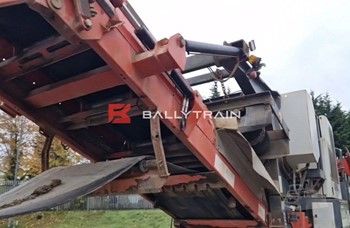

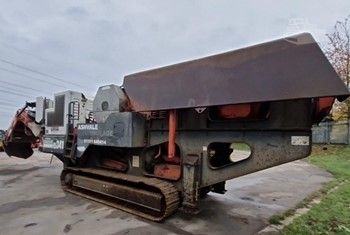

Sandvik QJ341 Mobile Jaw Crusher for sale, Mobile Jaw Crusher, 2012 year with 5,562 Engine hours on the clock. This is same as Extec C12 crusher, Fitted with Caterpillar Diesel engine. 1200MM X 750MM (47″x 29″) Jaw opening, The current Jaws fitted in the machine are 40% good as you can see from images below. The QJ341 Crusher has a large Vibrating feeder with folding hopper wings. The Grizzly feeder has been blocked off on this feeder. Cat ways all in place around crush box and engine bay, 4 x Heavy duty Landing legs, Hydraulic legs for increased stability and servicing capabilities. Magnet installed over main discharge belt for the removal of metals from crushed material. This QJ341 comes with Side belt for removal of fines / dirt before crushing. Very clean and tidy jaw crusher, running good. Sandvik QJ341 Mobile Jaw Crusher.

Sandvik QJ341 will produce up 400 Tonnes per hour. QJ341 Crusher is in good condition, Very Clean Jaw Crusher for sale. Cheap Mobile Jaw Crusher for sale. Same crusher as Extec C12. This Sandvik jaw Crusher will handle all types of material that needs to be crushed, Ideal machine for quarry operations or recycling/demolition business. Extec C12 Jaw Crusher.

Sandvik QJ341 Mobile Jaw Crusher

The QJ341 Mobile jaw crusher is the flagship of the range and one of the best selling track mounted jaw crushers in the world today.

The largest in the Sandvik Premium range of jaw crushers, the QJ341 Mobile jaw crusher features a massive 1200 x 750mm (47 x 29″) jaw opening designed to tackle the most difficult applications. It has been designed to meet the needs of the operator seeking a high performance mobile jaw crusher which is both reliable and durable. With a large feed opening and unique high crushing speed it is capable of delivering high outputs with excellent reduction ratios.

The powerful jaw crusher is capable of handling the most challenging of quarry applications but equally capable in the recycling segment with its large under-belt clearances and is equipped with a hydraulic raise and lower facility on the main conveyor as standard.

Features and Benefits:

Hydraulically adjustable jaw setting to maximise your output

Reverse crushing action to crush sticky material or relieve blockages

Hydraulic drive enabling the crusher to start under load, minimising downtime

Jaw level sensor available to control feed rate with minimal intervention

Raise/lower facility on the main conveyor, ideal for your recycling operations

KEY SPECIFICATIONS

Equipment Single toggle C12 jaw crusher

Feed Opening 1200 x 750 mm / 47″ x 29″

Optimum Feed Size 650 mm / 25″ 6′

Engine C9 / C9.3 Acert 261 kW / 350 hp

D11 Volvo 265 kW / 355 hp

Transport Length 14.05 m / 46′ 1 ¼”

Transport Width 2.86 m / 9′ 4 ½”

Transport Height 3.45 m / 11′ 3 ⅝”

Weight 45,233 kg / 99,722 lbS

Worldwide Shipping options available, for keenest rates to get this jaw crusher delivered to your local port or site please contact us.
