2014 REV GCS140

Description

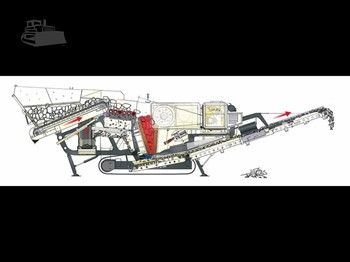

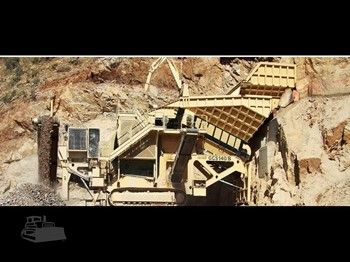

GCS 140/B designed as a primary crusher for mines or large quarries, easily moved around the blast face. The GCS 140/B has the advantage of an apron feeder which will provide consistent feed supply to a robust roller scalper, cleaning and removing fines prior to reaching the jaw box. The GCS 14/B also has the advantage of been equipped with the REV Quarry Line, technology that monitors the entire working process through data elaborating PLC system which allows the operators to have a precise and immediate overview of the crushers operations. There is a lot of crushers with 1400 mm or wider jaw opening but not many that have a depth of 1150 mm, (1400X1150) this permits this crusher to crush over size rock up to one meter in diameter, there for creating saving of inefficient and expensive rock breaking. By primary crushing large rock at the blast face this allows the product be reduced in size there for being able to be transferred by overland conveyors or reducing damage to loaders and dump trucks by larger rocks during loading and unloading. Alternatively, feeding direct into mobile secondary crushers and screens.

Apron Feeder

Roller Scalper

Automated or Manual Controls

Rotating Conveyor Belt

SPECIFICATIONS

Jaw Box: 1400x1150mm

Max feed size: 1000mm

Hourly production: up to 700 tonne

Apron Feeder: 5000x1400mm

Roller Scalper: 2000x1400mm

Fines Reclaimer Belt: 5300 x 1000mm

Rotating Main Conveyor Belt: 9000 x 1200mm

(stores over 800 C/M)

Engine: Cat 400 kw

Hopper Capacity: 26 meters

DIMENSIONS

Total Weight (excluding options): 138, 500 tonne

Width: 4600 mm

Height: 6800 mm

Length: 25,000 mm
