2014 REV GCV100

Description

Call for Price

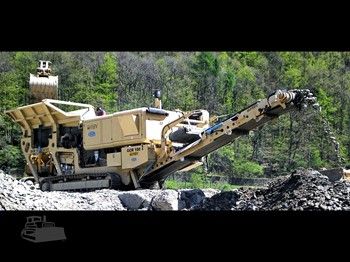

The GCR 100 offers increased production with the two deck pre-screen removing fines and damp product before reaching the jaw box. Fines can either be transferred by conveyor to the main product belt or stockpiled with a dedicated fines conveyor. The GCR 100/S offers extra flexibility with an attached 3.00m x 1250mm screen on the main conveyor belt, offering another two product sizes, making a total of three finished products. The screen can be removed when not required. The GCV 100 is the same size crusher but has a vibrating Grizzly feeder instead of the pre-screen. The options available to this mid size crusher offers the contractor and quarry operator the opportunity to select the right configuration to meet their demands and product requirements.

SPECIFICATIONS

JAW BOX

Inlet dimensions: 1015x650mm

Jaw Setting: 40-120 mm

Max Feed size: 500-600 mm

Hourly Production: 60-180 tonnes/hr

Feed Hopper: 6 cubic meters

GCV 100

Vibrating Grizzly Feeder

TRANSPORT DIMENSIONS

Width: 2,550mm

Length: 13,750mm

Height: 3,300mm

Weight: 29,030kg
