2014 REV GCV60

Description

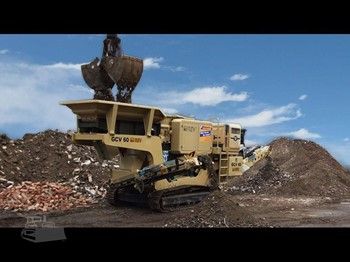

The 98 range of crushers offers three feeder options, two deck pre-screen scalper and a 3300 x 1250 product screen. Manual or automated controls and a diesel electric option. This crusher is unique by having a 900 x 800 jaw box, not normally available with other brands of crushers, this enables the 98 range to crush larger diameter rock that would otherwise have to be scalped out or broken down with a rock breaker, either option is time consuming and inefficient which transpires to either less production or increased costs. Add the two deck pre-screen scalper option which will increase your production by removing the fines prior to reaching the jaw box, the screened fines can be either transferred by conveyor to the main product belt or stockpiled with a dedicated fines conveyor. If you have damp or sticky material the apron feeder will provide a better feed option with a consistent flow of raw material which will avoid the build up that occurs at times with vibrating feeders. The 98 range is ideal for a contractor wanted to cover most options, or the quarry and recycling operations that don't want down time grading out over size product prior to crushing.

SPECIFICATIONS

JAW BOX HEADING

Inlet Dimensions: 900x800mm

Jaw Setting (CSS): 30-120mm

Max Feed Size: 700mm

Hourly Production:70-240 tonnes P/H

Feeder Hopper Options:6-9 meters

GCV 98

Vibrating Grizzly Feeder: 3200x900mm

TRANSPORT DIMENSIONS

Length: 12,300 to 14,320mm

Width: 2,550mm

Height 3,300mm

Weight 34,300 to 38,700 tonnes

Contact John Andersen or Christopher Wong today for the best price on this product!
