2014 REV GCV80

Description

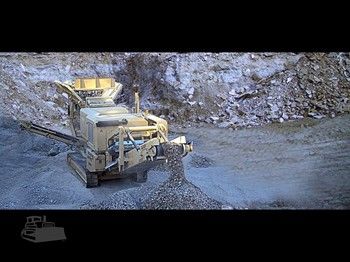

The GCV 80 is a versatile jaw crusher ideal for demolition or quarry work, still small enough to transport around the city, but big enough take on the bigger projects. With a closed side setting of only 25 mm it enables the GCV 80 to process rock to a finished size without the need to involve a secondary crusher, therefor making smaller crushing projects viable with savings on mobilization & operating costs. The GCV 80 has the advantage of a automatic jaw adjustment not seen on most smaller jaw crushers and load sensing pumps to improve performance. There is also a list of attractive options to improve productivity and working conditions, including an attached screen mounted off the front dispatch belt normally only available on larger crushers.

JAW CRUSHER

Inlet Dimensions: 815x580mm

CSS Range: 25÷110mm

FEEDING HOPPER

Standard Capacity: 6m³

Feed Height: 3.85m

FEEDER

Width: 800mm

Length: 2700mm

Vibrating: Grizzly

MAIN CONVEYOR

Width: 800mm

Length: 8400mm

ENGINE - DIESEL

Power: 130kw

PERFORMANCE

Max feed size: 450-500mm

Production: 30÷140 ton/h

TRANSPORT DIMENSIONS

Length: 11900mm

Width: 2550mm

Height: 3050mm

WEIGHT (excluding options)

24,060kg

STANDARD EQUIPMENT

Remote Control for Feeder

Remote Control for Tracks

OPTIONS

Side Conveyor

Overband Magnet

Dust Suppression System

Lubricating Unit

Process monitoring interlocking sensors

Hopper Extensions

Belt Protection Discharge Plate

Impact bars in main conveyor charge area

Attached Screen
