2014 SANDVIK CH440

Description

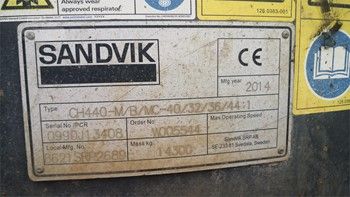

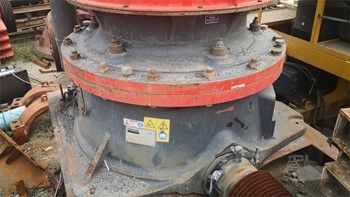

Original Sandvik CH440 Cone Crusher, Year 2014 in Good Condition;

Sandvik CH440 is suitable for a high-capacity secondary application or a high-reduction tertiary or pebble-crushing application, and it can be matched to changes in production through the selection of crushing chambers and an eccentric throw. This flexibility means that it's suitable for a wide range of applications.

Technical data:

Nominal capacity: 50 - 388 mtph

Max. feed size: 80 - 215 mm (1.5 - 8.5 in.)

Motor power: 220 kW (295 hp)

Closed side setting (CSS) range: 8 - 48 mm (0.3 - 1.8 in.)

Eccentric throw range: 16 - 44 mm (0.6 - 1.7 in.)

Mantles (inner liners): A, B, HC, EF, FF, HC

Concaves (outer liners): EC, C, MC, M, MF, F

Weight: 14,300 kg (31,500 lb)

Lubrication tank Standard
