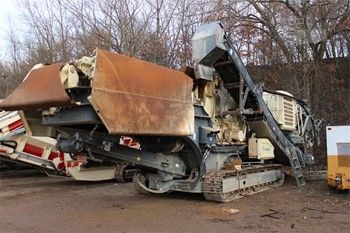

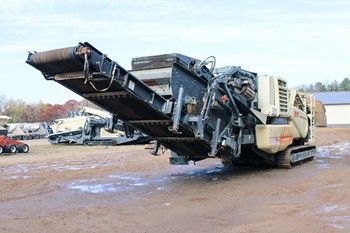

2016 METSO LT1213S

Description

Equipment As Follows:

Feeding Unit

• Feeding Unit – Grizzly feeder

o The vibrating feeder is equipped with 2 grizzly sections

o Horizontal feeder maximizes the overall production through the efficient removal of fines from the feed material

• 1st Grizzly – ZigZag 38mm (1 ½”)

o Upper grizzly

• 2nd Grizzly – ZigZag 38mm (1 ½”)

o Lower grizzly

• Screen Deck Media – Steel cloth 35mm (1 3/8”)

o Screen media to separate fines from feed and guide them to side conveyor. Screen mesh is mounted under the grizzlies

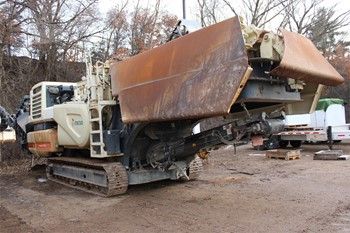

• Feed Hopper – Extended 9 m³ (12yrd³)

o Increases the volume of the standard feed hopper. Enables the loading either with an excavator or wheel loader and is made of wear resistant steel

o Side walls are folded down for the transport

o Feed hopper side walls are hydraulic operated and locked

o No tools required for set up

• Side Conveyor – Included (H5-4)

o Belt conveyor for transporting the fine material to the left or right hand side of the Lokotrack

o The side conveyor is equipped with hydraulic drive and safety trip wires on both sides of the conveyor

o Belt conveyor for transporting the fine material to the side of the Lokotrack

o The side conveyor is equipped with hydraulic drive and stop buttons both sides of the conveyor

o The folding and lengthening of side conveyor is hydraulic

Crusher

• Crusher – Impact crusher NP1213M

o NP1213M impact crusher is part of the NP series horizontal shaft impact crusher range

o This range features a unique combination of heavy rotor design, wear material and crushing chamber design

o The design minimizes maintenance time and improves all adjustment operations

o NP series impact crushers deliver unbeatable performance in primary, and recycling applications

• Hammers – Martensitic Xwin

o Metal Matric Composite (MMC) blow bars with ceramic particles on wear surface and martensitic steel insert

o Suitable for general quarry and recycling applications

• Belt Protection Plate – Included

o On the fixed jaw side a plate is mounted to guide the crushed recycling material together with steel parts onto the main conveyor and to protect the belt conveyor

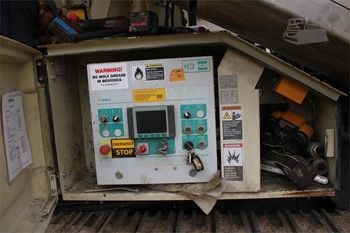

• Hydraulic Assistance

o Crusher setting adjusted and setting shown on IC display

o Hydraulic assistance for setting adjustment

• Service Hoist – Included

o Lifting device for changing the crusher wear parts

o Transported separately in one piece

Power Unit

• Diesel Engine – CAT C13

o Highly powerful and fuel efficient diesel engine

• Emission Class – Tier 4F

o Tier 4 Final (stage IV) emission regulated engine

• Climate Kit – Standard (-20C/-4F...35C/95F)

Main Conveyor

• Main Conveyor – Standard

o Discharge Height: 2800 mm (9 ft 2 in)

o Length: 11 m (36 ft 4 in)

o Belt Width: 1200 mm (47 in)

o Belt Speed: 2 m/s (6,6 ft/s)

o Hydraulic Motor Drive

o Belt conveyor for transporting the crushed material from the crusher to the discharge point

o The conveyor is equipped with discharge hood, hydraulic drive and emergency stop wires on both sides of the conveyor

• Magnetic Separator – Standard Magnet

o Permanent magnet to remove the iron waste from the crushed material

Screening Unit

• Screening Unit – 5’x12’

o Screen module TK13-30S with H5-10 return conveyor

o Horizontal single deck, single shaft screen

o Steel wire and rubber screen clothes available

• Screen Media - Steel cloth 40 mm (1 37/64")

• Screen width- 57 7/8” ICW

• Screen length- 12’

• Hook type- L2

• Hook direction- Hooks up

• Panels per deck- 4

• Panel size- Qty (4) 57.5” x 34.5”

Optional Equipment

• Interlocking – Included

o Secondary unit material level will control the feeding of primary unit

• Hydraulic Power Take Off – Included

o For connecting the auxiliary hydraulic equipment to the hydraulic system of the Lokotrack

• Water Spraying System – Included

o For binding dust particles at the crusher cavity, under the crusher and at the discharge end of main conveyor

• Remote Radio Control – Included (US / 458Mhz)

o Remote radio controller for the main functions

o Enables the remote control of following functions: start/stop of feeder unit, rpm adjustment of diesel engine, moving forward/reverse (tracks)

o Cable controller is always supplied with Lokotrack

o Halogen Lights

Finishing

• Color – Metso Beige

• Safety Labels – ANSI

Documentation

• Quantity of Printed Manuals – 1
