2017 CEDARAPIDS CRJ3255
CEDARAPIDS | CRJ3255
USD $375,000
Product Location: Lindon, Utah 84042
Description

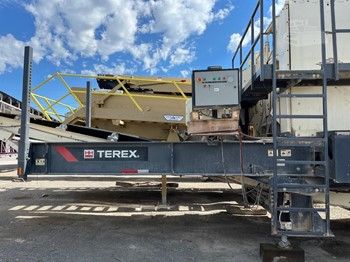

Used 2017 Terex Cedarapids CRJ-3255 S/N: TRX3255JAOKHL1018
• JW55 Jaw Crusher:
o Tool less hydraulic wedge jaw adjustment for quick safe adjustment
o Hydraulic tension rod automatically adjusts tension
o Electric/hydraulic adjust unit
o Quick change jaw die wedge system
o Side access to stationary die wedges
o High strength frame
Four-piece bolted and dowelled construction
o Bolted 3-piece side cheek plates for easy replacement
• 5220-15 Vibrating Grizzly Feeder:
o Removable hopper module with ¾” AR400 sides, minimizes axle loads when needed
o High stroke grizzly feeder, for improved grizzly fines removal
o Bolt-in grizzly bars with 4” nominal opening
o Bypass chute diverts grizzly fines to under crusher conveyor
o Rubber side curtains
• Undercrusher Conveyor
o Tail section lowers for operation, raises for transport
o Straight – line conveyor design keeps belts tight
o Adjustable discharge height to fit transfer
o Shaft mount gear box and TEFC motor
o Impact bars under jaw and grizzly bypass
o 3-ply conveyor belt with vulcanized splice
• Main Frame with Quad Axle
o Straight beam chassis with kingpin, under-frame mounted axles, spring suspension, air brakes, travel lights and splash guards
o Jaw mount vibration isolation pads
o Emergency stops on both sides of chassis
o Sixteen 295/75 R22.5 tires
o Adjustable kingpin support legs
o Service and observation platforms
o Remote grease lines for safe maintenance
o Lockable side-mounted storage box
o Hydraulic landing legs
- Model
- CRJ3255
- Category
- Crusher Aggregate Equipment
- Condition
- Used
- Serial Number
- TRX3255JAOKHL1018
