2018 CUSTOM BUILT 5 TPH

Description

Plant Includes: Crushing, Milling, Conveying, Pumping, Leaching, and Filtering Equipment.

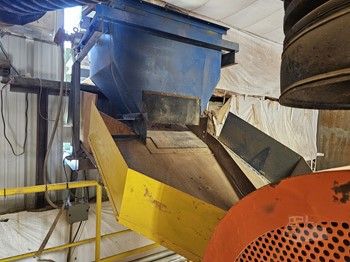

The process starts with filling the hopper with ore.

The ore is transported to the jaw crusher mill via a conveyor belt, then the ground ore falls into the hammer mill, and then into the fine grinding mill – impact mill. The ground ore is transported via the screw conveyor to the bucket conveyor, which transports the ore to the storage tank.

The ore from the hopper is weighed via the belt conveyor with the processor-controlled scale, before it goes into the leaching reactors.

After the leaching process: The process liquid is filtered on a hydraulic membrane filter press. The filtered liquid flows into the storage tank. When the leaching reactor is empty, liquid from the storage tanks is pumped back into the reactor. The same liquid is used until the appropriate concentration of gold in the liquid is reached.

When a high concentration of dissolved gold is reached, the liquid is stored in a storage tank for the further process of extracting gold from the liquid – absorption, desorption, reduction.

Year: 2018

Capacity: 5 Tons Per Hour

Condition: Used, Reported in Good Condition

Page 2

Equipment List:

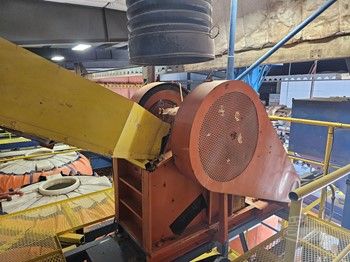

10in x 16in Jaw Crusher:

Hours: Approx. 30 Hours

Capacity: 5 - 20 TPH

Feed Size: 9in

Discharge: 3/4 - 3in

Drive: Electric Motor

Power Output: 30HP

Rotation Speed: 1,175RPM

Voltage: 460 Volts

Frequency: 60Hz

Phase: 3-Phase

Soft Inverter

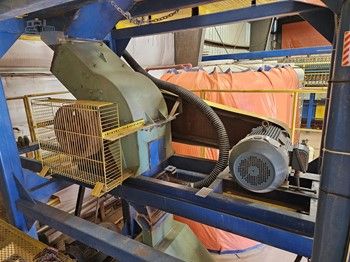

24in x 16in Hammer Mill:

Hours: Approx. 30 Hours

Capacity: 5 - 10 TPH

Feed Size: 5in

Discharge: 1/4in

Drive: Electric Motor

Power Output: 30HP

Rotation Speed: 1,779RPM

Voltage: 480 Volts

Frequency: 60Hz

Phase: 3-Phase

Soft Inverter

Stutenroth Impact Mill:

Hours: Approx. 30 Hours

Capacity: 5 TPH

Feed Size: 1/2in

Discharge: 100mic.

Drive: Electric Motor

Power Output: 40HP

Rotation Speed: 1,770RPM

Voltage: 460 Volts

Frequency: 60Hz

Phase: 3-Phase

Fiberglass Leaching Tanks and Agitators:

Agitators:

Qty: 2

Hours: Approx. 50 Hours

Drive: Electric Motor

Power Output: 40HP

Rotation Speed: 1,770RPM

Voltage: 230 Volts

Current: 610 Amps

Frequency: 60Hz

Phase: 3-Phase

Includes:

VFD Motor

Soft Start Inverter

Leaching Tanks:

Qty: 2

Capacity: 16,500L

Diameter: 2,743mm

Height: 3,995mm

Wall Thickness: 16mm

Construction: FRP

Includes:

Heating System

Multi-Parameter Controller

Page 3

12m³/Hour Pneumatic Double Diaphragm Pumps:

Qty: 3

Capacity: 12m³/hour

Discharge Pressure: 6 bar

Max Air Pressure: 7 bar

Max Air Consumption: 0.9m³/hour

For Chemicals Up to 1.5 PH

21m³/Hour Pneumatic Double Diaphragm Pumps:

Qty: 4

Capacity: 21m³/hour

Discharge Pressure: 5 - 8 bar

Max Air Pressure: 8.4 bar

Max Air Consumption: 1.5m³/hour

PTFE (Teflon)

35m³/Hour Pneumatic Double Diaphragm Pump:

Capacity: 35m³/hour

Discharge Pressure: 5 - 8 bar

Max Air Consumption: 1.5 - 2.5m³/hour

PTFE (Teflon)

Hengda Double Screw Air Compressor:

Make: Hengda

Hours: Approx. 20 Hours

Output: 2m³/min

Pressure: 10 bar

Air Tank Capacity: 600L

Drive: Electric Motor

Pressure Output: 20HP

Rotation Speed: 1,770RPM

Voltage: 230 Volts

Current: 610 Amps

Frequency: 60Hz

Phase: 3-Phase

Includes: Refrigerated Air Dryer with Filters

Outdoor Ore Hopper:

Hopper Capacity: 15m³

Vibrating Feeder

Indoor Ore Hopper:

Hopper Capacity: 15m³

Vibrator 1:

Drive: Electric Motor

Power Output: 0.75kW

Rotation Speed: 1,680RPM

Frequency: 60Hz

Vibrator 2:

0 - 5 kN

Drive: Electric Motor

Power Output: 0.4kW

Rotation Speed: 1,729RPM

Voltage: 240 Volts

Current: 1.62 Amps

Frequency: 60Hz

0.8m x 15m Belt Conveyor:

Hours: Approx. 30 Hours

Belt Width: 800mm

Belt Length: 15m

Belt Speed: 0.8m/second

Drive: Electric Motor

Power Output: 7.5kW

Voltage: 240 Volts

Current: 17 Amps

6m Mobile Stainless Steel Screw Conveyor:

Length: 6m

Feeder Hopper: 1m³

Drive: Electric Motor

Power Output: 0.75kW

Voltage: 240 Volts

Current: 3.51 Amps

Frequency: 60Hz

4.6m Screw Conveyor:

Hours: Approx. 30 Hours

Length: 4.6m

Screw Diameter: 28cm Dia.

Drive: Electric Motor

Power Output: 3kW

Rotation Speed: 1,728RPM

Voltage: 210 Volts

Current: 10.2 Amps

Frequency: 60Hz

Bucket Elevators:

Qty: 2

Hours: Approx. 30 Hours

Height: 8m

Angle: 90°

Drive: Electric Motor

Power Output: 2.2kW

Rotation Speed: 1,704RPM

Voltage: 240 Volts

Current: 7.7 Amps

Frequency: 60Hz

Belt Conveyor with Scale:

Hours: Approx. 10 Hours

Capacity: 10 TPH

Length: 5.3m

Width: 85cm

Drive: Electric Motor

Power Output: 4kW

Rotation Speed: 1,740RPM

Voltage: 240 Volts

Frequency: 60Hz

Hydraulic Membrane Plate Filter Press:

Capacity: 5.4 TPH

Filter Chamber Volume: 1,500L (396gal)

Filter Area: 100m² (1,076.4ft²)

Design Pressure: 0.6Mpa

Plates: 57 Plates

Plate Size: 1m x 1m (3ft 3/8in x 3ft 3/8in) Plates

Cake Thickness: 30mm

Cake Size: 2.7 Ton Cake per Batch

Drive: Hidravlik Electric Motor

Power Output: 3kW

Rotation Speed: 1,728RPM

Voltage: 210 Volts

Frequency: 60HZ

Belt Conveyor under Filter Press:

Length: 12.5m

Drive: Electric Motor

Power Output: 3.8kW

Rotation Speed:

Voltage: 240 Volts

Current: 13.5 Amps

Frequency: 60Hz

Weight: 4,290kg (9,457lbs)

Storage Tanks:

Qty: 4

Capacity: 15,000L

Diameter: 2,500mm

Overall Height: 3,400mm

Wall Thickness: 16mm

Construction: Polyethylene

2 Tanks Equipped with Heating Systems

Reactor for Reduction Process:

Qty: 2

Tank:

Capacity: 1,000L

Diameter: 800mm

Height: 1,300mm

Wall Thickness: 6mm

Mixer:

Power Output: 1/3HP

Rotation Speed: 1,720RPM

Voltage: 208-230 Volts

Frequency: 60Hz

Pump:

Model: AC-3CP-MD

Power Output: 1/15HP

Rotation Speed: 3,000RPM

Voltage: 115 Volts

Current: 2.3 Amps

Frequency: 60Hz

Carbon Towers:

Tanks:

Qty: 3

Capacity: 100L

Construction: FRP

Pump:

Qty: 1

Model: AC-3CP-MD

Flowrate: 15L/min

Power Output: 1/15HP

Rotation Speed: 3,000RPM

Voltage: 115 Volts

Current: 2.3 Amps

Filter Housing:

Capacity: 50L

Construction: Stainless Steel

CAT Diesel Generator:

Year: 1994

Hours: 2,150 Hours

Condition: Used, Reported in Good Condition

Voltage: 600 Volts

Current: 800 Amps

Frequency: 60Hz

Electrical Panel:

Make: Sun Valley Electric

Model: 5W WCTML8-8-4 D

Year: 2016

4 Wire

Voltage: Voltage: 480/277 Volts

Supply Current: 800 Amps

Frequency: 60Hz

Phase: 3-Phase

Transformer:

Make: Hammond Power Solutions

kVA: 300kVA

Primary Voltage: 480 Volts

Secondary Voltage: 240 Volts

Phase: 3-Phase

Temp. Rise: 150°C

Location: Southwest USA
