2018 METSO LT1110S

Description

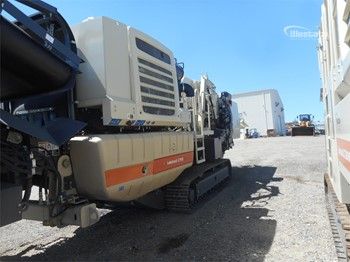

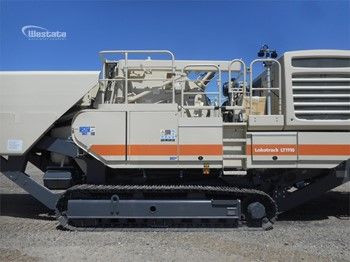

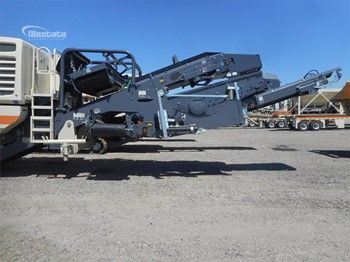

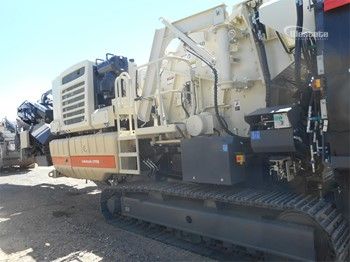

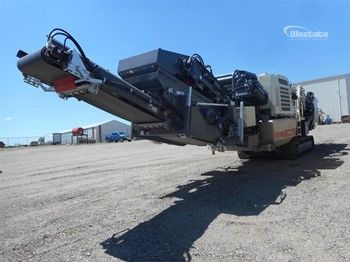

Metso (Nordberg) LT 1110S Track Mounted Impact Crusher with Screen and Recirculation conveyor

Crusher: Max feed 24” in hard rock

• Nordberg NP1110M impact crusher 40”x32”

• 44" Diameter Rotor

• Hydraulic assistance for setting adjustment

• Belt protection plate

• Hydraulic pressure control

• Service hoist

Feeder & Hopper:

• 38” X 14’ Horizontal vibrating feeder

• Grizzly Spacing Zigzag Plate 1.5” and 1” screen deck

• 6.5yd hopper capacity

• Hydraulic folding of side walls

• Bypass chute with flop gate

• Side conveyor for grizzly bar throughs

Main Conveyor 39”X33’:

• Width 39”

• Length 33’

• Discharge height 9’ 2”

• Self Cleaning Magnet

•

Screen Unit 43”X 10':

• With Under screen conveyor 9'2"' discharge

• With Cross Conveyor at the end of the screen

Recirculation Conveyor 31' long, Caterpillar C-9 diesel engine, PLC control system, Water spraying system, wireless remote, hyd power take off

FOB Billings MT

Options:

• Side conveyor for grizzly bar throughs

• Hopper extensions (10.5yd)
