2019 LIPPMANN 4800

Description

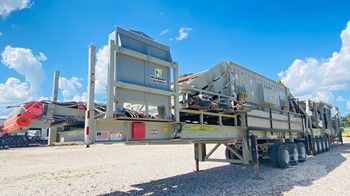

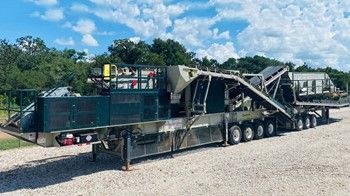

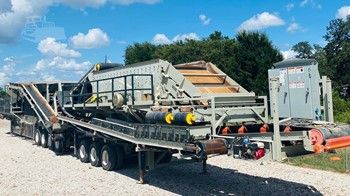

2019 Lippmann Combo Plant 4800 and 620 Horizontal Triple Deck SN:2019-02123

• Electric Crusher & Screener 4800 OC 2019-02123-6x20 TD Screen

• An extra heavily ribbed steel frame- stress relieved after welding and before machining

• One piece steel pitman

• Heat-treated forged alloy steel eccentric shaft

• Oversized roller bearings on the pitman

• Spherical roller bearings on the frame

• Reversible manganese steel jaw dies and extensions

• Steel cheek plates

• Opposing wedge toggle tensioning system

HP REQUIREMENTS:

IMPACTOR PANEL

- IMPACTOR : 250 HP

- FEEDER : 30 HP (VFD)

- MAGNET : 5 HP

- REAR DISCHARGE : 20 HP

- PAN FEEDER : X2 2.5

- RETURN CONVEYOR : 10 HP

- GRIZZLY BY-PASS CONVEYOR : 7.5 HP

SCREEN PANEL

- SCREEN RETURN : 10 HP

- SCREEN : 40 HP

- CROSS CONVEYOR #1 : 7.5 HP

- CROSS CONVEYOR #2 : 7.5 HP

- CROSS CONVEYOR #3 : 7.5 HP

- UNDERSCREEN DISCHARGE : 20 HP

- OFF PLANT #1 : 30 HP

- OFF PLANT #2 : 30 HP

- OFF PLANT #3 : 30 HP

PLANT HP : 420 HP
