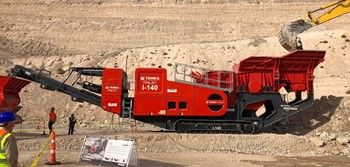

2019 TEREX FINLAY I140

Description

Fixed Hopper with Optional hydraulically folding and locking

extensions

VGF Hopper capacity - No Ext: 6m³ (7.85yd³)

VGF Hopper capacity - With Ext: 9m³ (11.8yd³)

Hopper Extensions: Optional with hydraulic folding & locking

mechanism

Rotor diameter: Ø1270mm (50”)

Rotor width: 1220mm (48.8”)

VGF Inlet opening: 1.16m x 865mm (45.6” x 34”)

Prescreen Inlet opening: 1.17m x 835mm (46” x 33”)

Direct drive via ‘V’ belts

Belt Width: 1.3m (52”)

Discharge Height: 3.5m (11’ 5”)

Discharge Height: 3.76m (12’ 4”)

Stockpile capacity: 69m³ (90yd³)
