2021 ASTEC FT2650

Description

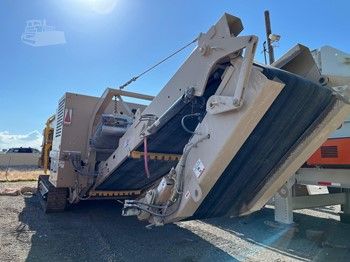

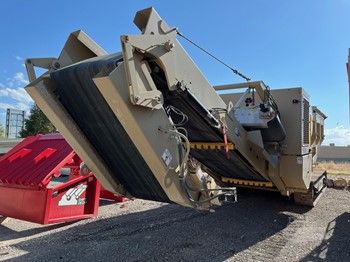

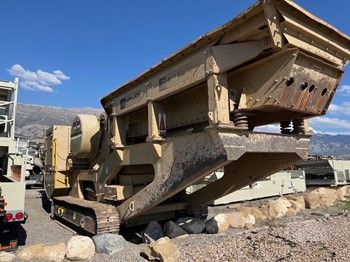

KPI model FT2650 Track Mount Jaw Crusher S/N: 419466

· Engine – CAT C9.3 335HP, Tier IV, 1800 RPM

· Control System - Radio remote/tether

· Pioneer Jaw Crusher – 2650 automatic hydraulic dual wedge adjust CSS, hydraulic drive for crusher, full belly jaw dies and remote grease lube

Note: Set jaw crusher close side setting at 4” peak to peak unless otherwise noted.

· Track Undercarriage – track width 500 mm (19.7”)

· Feeder – 50” x 18’, 5’ step deck grizzly bars 2 ½” spacing, loading hopper with fixed walls and three-way by-pass chute

· End Delivery Conveyor – 1200 mm (approx. 48”) x 40’ hydraulic drive, 360 PIW 4 ply endless belt, conveyor is easily removable for maintenance

· Dust Suppression System with manifold for customer water source

· Hydraulics – includes hydrostatic pump group and circuit, one (1) 12 GPM auxiliary circuit for side delivery conveyor (less side delivery conveyor), one (1) 20 GPM auxiliary circuit, and hydraulics for magnet (less magnet)

· Paint - Factory standard color(s)

Included Options:

· Magnet: Permanent cross belt magnet

· Extended End Delivery Conveyor to 44’ with 12’ 2” discharge under head end with hydraulic fold for travel vs. standard 40’.

· Lighting Package – mounted on engine compartment
