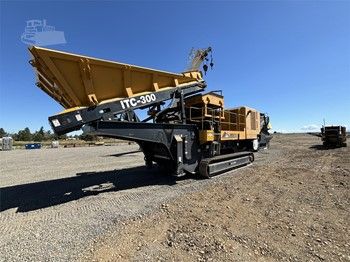

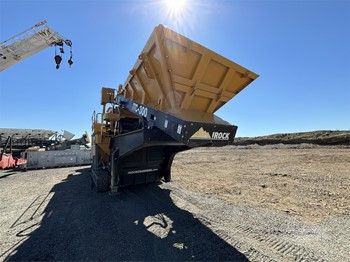

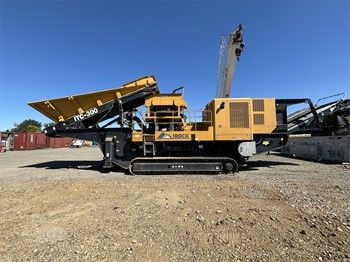

2021 IROCK ITC300

Description

CRUSHING CHAMBER…

Metso HP300 Cone Crusher

Feed opening: 41” (1050mm)

Crusher input speed: 750 - 950 rpm

Crusher Drive: Direct drive

Closed side setting adjustment: Hydraulic

Level sensor: Ultrasonic

Throw: 3.3” (84 mm) at discharge with new liners

Power required: 300 Hp

FEEDER…

Feeder opening width: 36” (910 mm)

Feeder drum crs.: 19’ – 8.2” (6.0 m)

Drive: Hydraulic

Feeder belt width: 48” (1200 mm)

Motor: Danfoss OMSS 125

Gearbox: Bonfig 809 W2 24.2:1

Flow rate: 33.8 GPM (128 LPM)

Adjustable speed: Yes

Maximum speed: 42 rpm

HOPPER…

Length: 12’ – 4.9” (3.78 m)

Width: 7’ – 2” (2.2 m)

Volume: 6.5 yd3 (5 m3) levelled off, 8.1 yd3 (6.2 m3) heaped

Material: ¼” sides + 3/8” Hardox® liners

MAIN CONVEYOR…

Stockpile height: 12’ – 9” (3.887 m)

Belt width: 48” (1200 mm)

Belt spec: Plain 500/3 8+2

Drive drum dia.: 13.7” (350 mm)

Tail drum dia.: 10.6” (270 mm)

Motor: OMV800

Flow rate: 23.7 GPM (89.6 LPM)

Maximum speed: 112 rpm

Angle adjustable: YES

Quick release: YES

POWERUNIT AND HYDRAULICS

Engine: Volvo D13 Tier 5

Engine power: Volvo - 380 Kw (510HP)

Engine speed: 1570 - 1900 rpm

Cone drive clutch: PT-tech HPTO14TF1

Flywheel Pump 1 (Tracks/Feeder): Kawasaki K3VL80

Flywheel Pump 2 (Tracks/Main conveyor): Kawasaki K3VL80:

LH PTO Pump 3 (Auxiliary/Lube/pilot): Turolla 29/29/10

Total system flow (max): 88.5 GPM (335 LPM)

Hydraulic tank capacity: 211 gal (800 L)

ELECTRICS…

Emergency stops: 4 off, 2 feeder, 2 power unit

Chassis cabling: Armored cable

Start Siren: YES – 10 sec delay

Control panel: Tedd Engineering / IFM

Engine shutdowns:

• Low oil pressure

• High water temp

• Air filter blockage (selectable)

• Fuel contamination

• Low hydraulic tank level

• Low lube oil flow

• Low lube oil pressure

• High lube oil temperature

• High hydraulic oil temperature

Radio control tracks and feeder: STANDARD

Pendant track control: YES – plugged in control cabinet

TRACKS…

Width: 15.7” (400 mm)

Length: 13’ – 5.4” (4.1 m) crs

Height: 32” (817 mm)

Gearbox: Bonfiglioli 711

Ratio: 144:1

Motor: Rexroth A2FE90

Speed max: 0.93 mph (1.50 kph)

Flow rate: 40.2 GPM (152 LPM)

Multiple speeds: Three speed system selectable at control panel with smooth start / stop

CAPACITIES…

Diesel tank capacity: 290 gal (1100 L)

Hydraulic tank capacity: 211 gal (800 L)

SAFETY FEATURES…

External belt alignment points

External grease points

Engine safety shutdown systems

Full safety guarding for nip points
