2021 IROCK TJ2440

Description

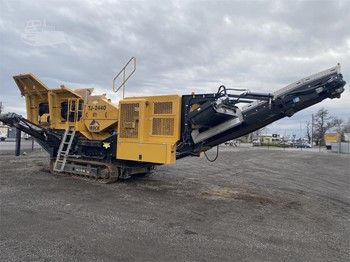

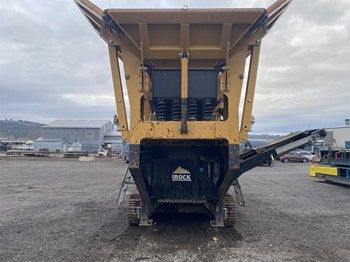

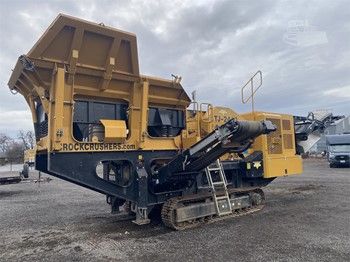

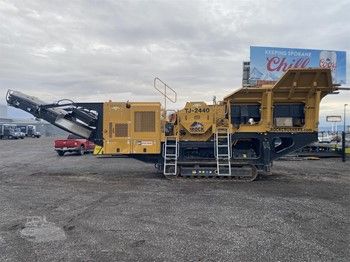

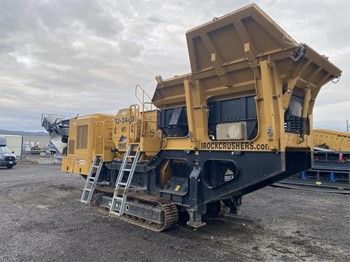

2021 IROCK TJ-2440 Heavy Duty Track Jaw

Crusher complete with the following:

24” x 40” single toggle jaw

I-beam plate fabricated chassis construction

Open chassis design for ease of maintenance-Fast setup time

The crushing chamber is comprised of the following-

Feed opening of 24” x 40”

Min opening of 2in-Max opening 6.15in

CSS adjust via Twin hydraulic ram wedge adjust system"

OVERBAND MAGNET ON MAIN CONVEYOR (TWIN POLE)

CHUTES INSTALLED ON THE MAIN CONVEYOR FOR OVERBAND MAGNET

Hopper loading dimensions 6’ – 9” wide x 13' – 8.5” long- volume of 7.4 yd3

(8.9yd3)

HOPPER EXTENSIONS - STANDARD SIZE

Grizzly Feeder dimensions are 37.4” wide by 12’ – 7” long- hydraulic direct drive

with adjustable speed

48" Long Feeder Grizzly Section Tapered 1.4" - 2.75" APERTURE

CAT TIER 4F C7.1 225HP (166KW)

Consists of a Main Conveyor 36 Plain EP500/3 8+2 BREAKER DIN Y

conveyor standard stockpile height: 11' -4.2"

SIDE CONVEYOR INSTALLED WITH STRAIGHT FINES CHUTE DISCHARGE EXTENSION

SIDE DISCHARGE CONVEYOR 26” (650 mm), EP 500/3 5+1.5

WIRED/WIRELESS REMOTE CONTROL ON TRACKS (COMPLETE WITH START/STOP FEEDER)

SAFETY BEACON LIGHTS (INCLUDED)
