2021 KPI-JCI CS3055

Description

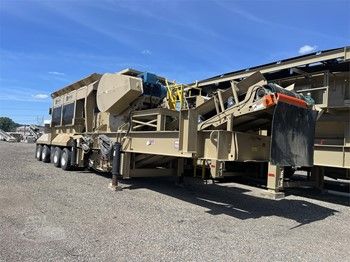

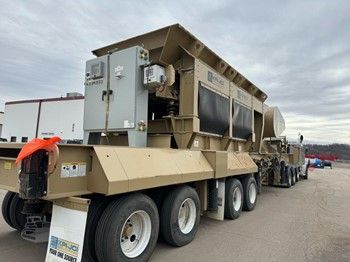

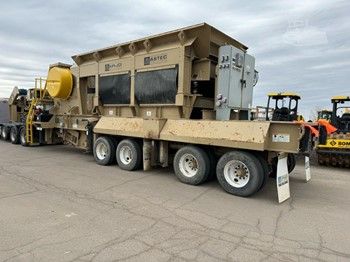

2021 KOLBERG PIONEER CS3055 JAW PLANT, ELECTRIC PORTABLE

WITH VGF

Jaw Opening: 30 Jaw Width: 55

SPECIFICATIONS:

MAIN TRUCK - semi-trailer with triple rear axle, fifth

wheel pin, rear crib leg and king pin support assembly

TIRES - pneumatic - 12 rear 11:00 x 22.5 dual mounted

AIR BRAKES on rear axles; travel light package includes

mudflaps

PIONEER JAW CRUSHER - 3055 with hopper, hydraulic wedge

type adjust with auto tension, with 2 HP electric/hydraulic

power pack (LESS starter and wiring). NOTE: Set jaw crusher

close side setting at 4" peak to peak unless otherwise noted

END DELIVERY CONVEYOR - 48" channel frame with drive, belt,

belt cleaner and 20 HP electric motor

VIBRATING FEEDER - 50" X 20' horizontal type oil bath, with

5' replaceable and adjustable grizzly, 3/4" mild steel deck

liner, supports, loading hopper fabricated of 3/4" plate,

v-belt drive and 40 HP electic motor,

4" nominal grizzly bar spacing is standard

BY-PASS CHUTE - under grizzly

SERVICE PLATFORM - with ladder

MOTOR MOUNT AND V-BELT DRIVE - for power unit with safety

type v-belt guard

INCLUDED OPTIONS:

TEFC Electric Motor for crusher @ 1200 RPM 200 HP

Starter & 60' of cable for crusher motor 200HP

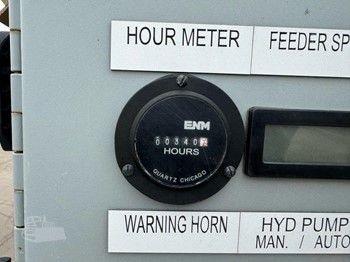

Electric Motor Controls - for basic plant (excluding main

crusher) in NEMA-12 panel box with remote

panel board, includes variable frequency drive for

feeder

Remote Cable - 150' remote cable vs. std.

Split Quad Airbag Suspension Axle with 16 11:00 x 22.5

Description Amount

tires (in place of triple axle)

Hydraulic Raising and Plant Leveling System - includes

power unit package consisting of an 8 HP gas

(electric start) with 11 gallon reservoir, hydraulic

pump and control valves with relief valve mounted on

rubber isolation mounts (for operating plant on jacks

without cribbing) - 6 cylinders 6" run on style.

Hopper inside to be built using T1

Feeder pan deck liner to be 3/4" AR400

LESS flop gate
