2021 METSO C3054

Description

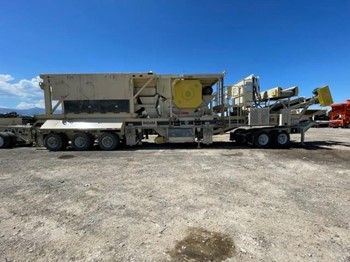

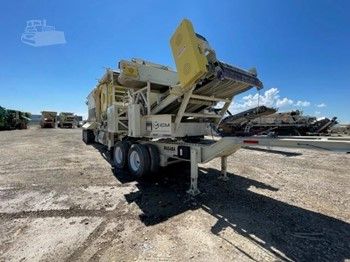

2021 Metso Portable C3054 Jaw Plant with a 58” x 20’ VGF on Masaba Chassis

Metso 3054 Jaw Crusher

Metso VGF

• 14’ Pan with replaceable ¾” AR steel liners

• Unit set up with one 6’ long grizzly section ( Grizzly openings set up with 4” opening)

• Metso to install and supply grizzly bars

• ½” Quick Change AR side plate liners (4) – 110mm, 23 series bearings).

• Mounted on steel coil springs at 0 degrees

• V-belt drive includes feeder sheave, motor sheave, and belts

• V-belt guard

• Back up Spring pads located under feeder frame

• Spacer plate installed at first grizzly section adjacent to end of pan

• Cast manganese grizzly bars

• HR Spring motor base

Masaba Chassis

• Triple Axle (118” Track) Chassis - constructed of Heavy-Duty wide flange beam. Kingpin end of beams angled in for turning clearance

• Heavy Duty 25,000lb Leaf Spring Suspension - with (12) 11R x 22.5 radial tires

• Fenders

• Brake Package – air brakes, emergency valve and plumbing

• Light Package – brake and directional signals

• Tandem Axle Booster Hitch – included. Booster not included

• VGF Module – VGF, hopper and support structure with skid frame, can be removed for travel

• VGF Hopper - constructed of 3/4” AR steel

• VGF Motor - WEG 40hp 1800 rpm

• VGF Motor Sheave, Bushing & V-Belts

• Grizzly Bypass Chute – constructed of 1/2" AR steel

• VGF Side Guards – rubber curtains on both sides of feeder in loading areas

• Qty. (2) Bulkheads – constructed of 1/4" mild steel

• Crusher Motor – WEG 200hp 1200rpm

• Crusher Motor Sheave, Bushing & V-Belts

• Crusher Guarding

• 54” Under Crusher Conveyor – kingpin end discharge. With Dodge TXT#5 reducer, WEG 20hp motor, PPI CEMA C idlers, impact idlers, impact bed, 3-ply 1/4" x 1/16” belt with vulcanized splice, Flexco belt cleaner and full length flashing.

Discharge height to feed Masaba HP300 closed circuit plant. Bend minimized as much as possible

• Walkway & Ladder - Upper and lower platforms with diamond plate flooring, handrail, knee rail and kickplate. Fabricated access ladder to upper platform and (2) fabricated access ladders to lower platform. Upper platform supports to frame, not

supported off the crusher

• Hydraulic Lifting Jacks & Power Unit –Qty. (6) Lift Only Hydraulic Jacks with (8) Jet Jack Run On Legs. Front legs fold up for travel. 13hp Honda electric start gas power unit with reservoir & filter, valve body and plumbing. Honda unit with

lockable cage

• Aluminum Toolbox – with lockable, hinged lid. To eliminate wood crates for road transport

• Cord Holder

• 36” Bypass Cross Conveyor

Located in our Salt Lake City, UT location
