2021 METSO HP300

Description

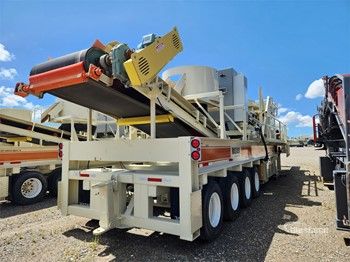

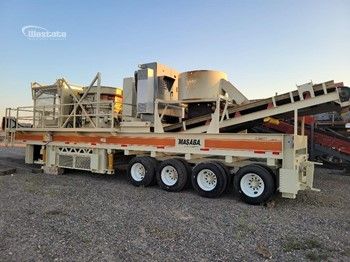

Metso HP300 Portable Rear Discharge Cone Plant

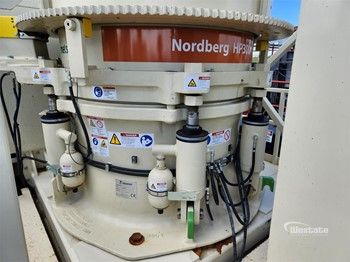

HP 300 CONE:

• 300HP 1200RPM Weg crusher duty cone motors

• Hydraulic adjust underload

• 80% Pass the closed side setting

• Multiple Liner Configurations

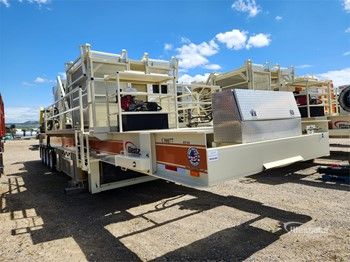

4 AXLE CARRIER:

• Heavy duty wide flange beam.

• Quad axle chassis Break and Lights

• Sub frame for cone and motor on isolators

• Heavy duty 25,000lb spread axle suspension (spaced at 5’ centers) w/ (12) 11R x 22.5 radial tires

• Under crusher hopper with rock ledge, constructed of 3/8” AR steel

• Cone rock box feed hopper with over flow chute- feed hopper to rest on chassis pegs during travel

• Motor and crusher belt guard/cage assembly with inspection doors

• Qty (4) hydraulic jacks, 12 volt hydraulic unit, oil tank, valve and plumbing

• Removable switch gear mounting stand

• Diamond plated catwalk, access ladder and removable railing constructed of 2” tube

• Four ground support stands with jacking legs

• Two folding front legs

• Guarding

• Radiator cover for transportation

• Standard 5th wheel PL, air brakes all three axles, lights, & mud flaps.

48" UNDER CONE CONVEYOR:

• 15 HP TEFC

• 48” wide straight under crusher end discharge conveyor

• 3 Ply belt with ¼” top cover

• CEMA idlers

• Belt Cleaner

• Vulcanized lagged head pulley, self cleaning wing tail pulley

• Formed skirt board rubber

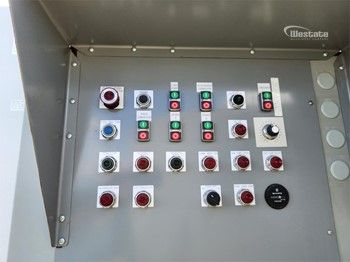

Electrical starters and Controls

Complete switchgear package w/ NEMA 4 enclosure, breakers, (1) 400HP VFD start/stop pushbuttons, starter for main disconnect, emergency stop, two extra #2 starters, Air-conditioning unit to keep box cool
