2021 METSO HP400

Description

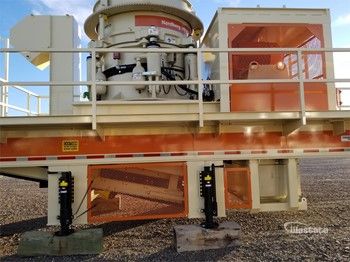

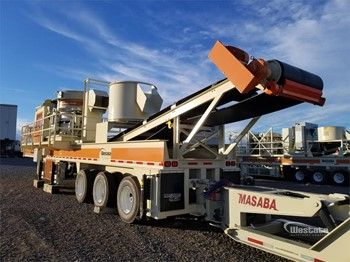

Metso HP400 Portable Rear Discharge Cone Plant

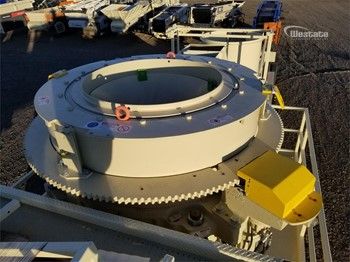

New HP 400 CONE:

• Qty (2) 200HP 1200RPM crusher duty cone motors

• Hydraulic adjust underload

• 80% Pass the closed side setting

• Multiple Liner Configurations

New 3 AXLE CARRIER:

• Heavy duty wide flange beam.

• Triple axle chassis Break and Lights

• Cone mounted on isolation base for smooth operation

• Duel motors mounted on same isolation base to float with the cone.

• Heavy duty 25,000lb spread axle suspension (spaced at 5’ centers) w/ (12) 11R x 22.5 radial tires

• Under crusher hopper with rock ledge, constructed of 3/8” AR steel

• Cone rock box feed hopper with over flow chute- feed hopper to rest on chassis pegs during travel

• Motor and crusher belt guard/cage assembly with inspection doors

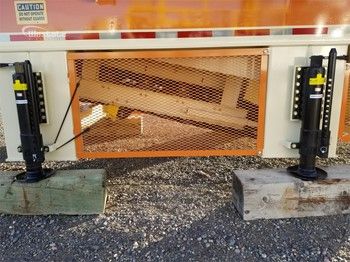

• Qty (6) RunOn hydraulic jacks, Honda power unit, valve and plumbing

• Removable switch gear mounting stand

• Diamond plated catwalk, access ladder and removable railing constructed of 2” tube

• Six ground support stands with jacking legs

• Two folding front legs

• Guarding

• Radiator cover for transportation

• Standard 5th wheel PL, air brakes all three axles, lights, & mud flaps.

New 48" UNDER CONE CONVEYOR:

• 15 HP TEFC

• 48” wide straight under crusher end discharge conveyor

• 3 Ply belt with ¼” top cover

• CEMA idlers

• Belt Cleaner

• Vulcanized lagged head pulley, self cleaning wing tail pulley

• Formed skirt board rubber

New Electrical starters and Controls

Complete switchgear package w/ NEMA 4 enclosure, breakers, (2) 200HP electronic soft-start with bypass contactor, start/stop pushbuttons, starter for main disconnect, emergency stop, two extra #2 starters
