2021 METSO HP400RD

Description

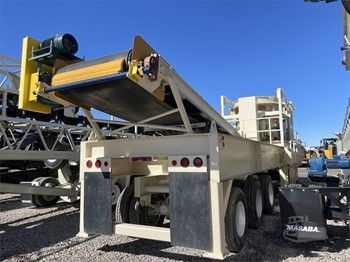

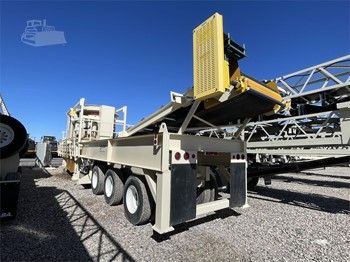

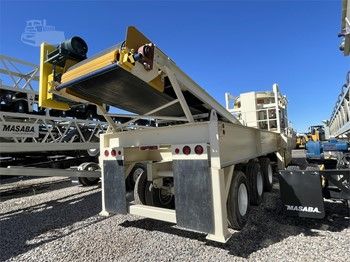

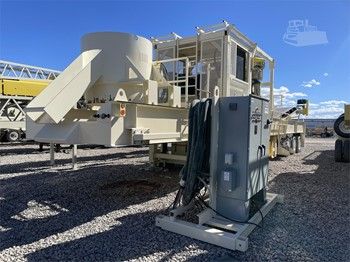

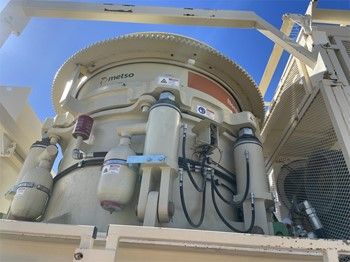

2021 Metso HP400RD Portable Tri/A Cone Crusher w/ Electric Panel

• CRUSHER ECCENTRICITY- STANDARD

• HYD MOTOR LOCATION-ON COUNTER-SHAFT CENTERLINE

• CRUSHER CAVITY-INCLUDED

• STANDARD MEDIUM LINERS

• MOTOR POSITION- STANDARD BTW

• 8 AND 4 O'CLOCK

• DRIVE- SINGLE DRIVE

• ACCUMULATOR CERTIFICATION-STNDRD

• AMBIENT TEMP- MINIMUM TEMP 5F

• CRUSHER PULLEY AND HUB-INCLUDED

• ACCUMULATOR CHARGING KIT-INCLUDED

• LUB UNIT- ''NPT''

• FAN-COOLED AIR

• COOLER TYPE-AIR COOLER UP TO 40C

• BALZER CHASSIS

• HEAVY UNDER CRUSHER ROCK BOX

• STOP-TAIL-TURN & RUNNING LIGHTS,

• AIR LINES FOR BRAKES, FIFTH WHEEL PIN & MOUNTS FOR AXLE

• FOUR (4) HYD LIFTING LEGS

• HD ADJUSTABLE MOTOR MOUNT AND DRIVE GUARD

• WALKWAYS AROUND CONE W/LADDER ACCESS WITH SAFETY GATE

• MOUNTS FOR HYD AND LUBE SYSTEM

• MOUNT FOR CONTROL SYSTEM

• 42'' UNDER CRUSHER CONVEYOR FRAME

• CONE FEED BASKET W/OVERFLOW CHUTE

• TRIPLE AXLE SUSPENSION, AXLES WHEELS, TIRES AND AIR BRAKES

• UNDER-CRUSHER DISCHARGE CONV

• 15 HP MOTOR AND DRIVE, DODGE TXT515 REDUCER, DODGE MOTOR MOUNT AND GUARD, • DODGE S2000 BEARINGS (3-7/16 DIA. FOR HEAD PULLEY & 2-15/16'' DIA FOR TAIL PULLEY)16X44 LAGGED HEAD PULLEY 14X44 WING TAIL PULLEY,SUPERIOR IDLERS CEMA C 5'' DIA. IDLERS AND 5'' RUBBER DISC RETURN ROLLS WITH GUARDS, 42''X3/16X1/16''#-PLY #330 BELT INSTALLED WITH MECHANICAL FASTENERS

Located in our Salt Lake City, UT yard
