2022 CEDARAPIDS MVP380X

Description

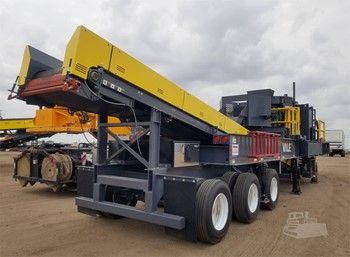

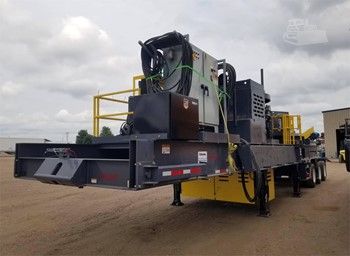

VALE/CEDARAPIDS MVP380X REAR DISCHARGE CONE PLANT EQUIPPED AS PER BELOW:

PLANT SPECIFICATIONS:

- CARRIES MVP380X CONE AND ACCESSORIES

- COG DRIVE SPROCKETS, BUSHINGS AND CONE DRIVE BELT

- WEG 300 HP 1200 RPM CRUSHER DUTY ELECTRIC MOTOR

PLANT STRUCTURE AND HIGHWAY TRANSPORT:

- W24X68 MAIN BEAMS AND PRIMARY CROSS MEMBERS

- TWO SWING-DOWN LEGS KING PIN END

- WIDE BASE TRIDEM AXLE WITH DUAL 11R22.5 TIRES, SPRING SUSPENSION

- 5TH WHEEL PIN AND TOW BAR

- AIR BRAKES, LIGHTS, REFLECTIVE TAPE AND MUD FLAPS

HYDRAULIC POWER UNIT HONDA GAS ENGINE:

- HONDA 9HP W/ ELECTRIC START, BACK UP RECOIL, 3A CHARGE SYSTEM

- W/ 10 GALLON RESERVOIR, HOSE AND FITTINGS

RUN-ON LEGS (6)

- 58,900 LBS 5X18 RUN-ON LEGS

- DUAL COUNTERBALANCE VALVE, HARD PIPED

- 6 VALVE BLOCK, HOSES AND FITTINGS

CONE DRIVE:

- RIGID FRAME, WITH MOTOR BASE, BUILT-IN SCREW ADJUSTMENT FOR BELT TENSION

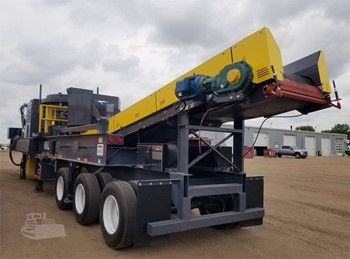

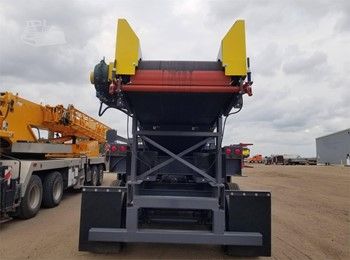

42" REAR DISCHARGE CONVEYOR:

- 42" BELT 375-3PLY 1/4 X 1/16 D6 BELT VULCANIZED BELT SPLICE

- 14 HEAD DRUM PULLEY, 3/8 LAGGED, 1045 SHAFTING, 215 SCM BEARING UNITS

- 12 WING TAIL PULLEY WITH SCREW TAKE-UP, 1045 SHAFTING, 215 SCM BEARING UNITS,

GUARDED

- 15 HP WEG ELECTRIC MOTOR DRIVE

- DODGE MTA RIGHT ANGLE DRIVE WITH BACKSTOP

- SUPERIOR C5 20 DEGREE CHANNEL INSET TROUGH IDLERS AND FLAT RUBBER DISC RETURNS

- 1'-6" LOAD ZONE, 3' CARRY, 10' RETURN SPACING

- LOAD ZONE WITH IMPACT IDLERS

- CONVEYOR LOAD ZONE, INTERFACED TO MVP380X DISCHARGE HOPPER

- AR LINED AND CLAMP-ADJUSTED ORANGE SKIRT RUBBER

- SUPERIOR BELT CLEANER, URETHANE BLADE AND TENSIONER

- FULL LENGTH TROUGH GUARDS BEYOND LOAD POINT BOLT ON

- FULL LENGTH SKIRTS

- C8 CHANNEL FRAME WITH ADDED REINFORCEMENT FOR CANTILEVER AND LONG SPANS

HYDRAULICS REAR DISCHARGE CONVEYOR:

- CONVEYOR TAIL RAISE AND LOWER FOR MAINTENANCE ACCESS

- 2 CYLINDER, 1 VALVE BLOCK, HOSES AND FITTINGS

PLATFORM, HANDRAIL, LADDER:

- CHECKER PLATE PLATFORMS WITH 6" KICK PLATES

- 42" HSS 1.5 HANDRAIL WITH MID-RAIL AND POSTS, REMOVABLE

- 2 LADDERS WITH SAFETY GATE ACCESS

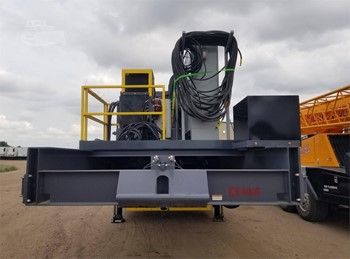

REAR PLATFORM:

- APPROX. 32" WIDE X 10'

2 SIDE PLATFORMS:

- APPROX. 22" WIDE X 17'

FRONT PLATFORM:

- COVER HITCH END TO ACCESS HYDRAULIC ASSEMBLY AND OIL COOLER

OBSERVATION DECK:

- INCORPORATED INTO DRIVE GUARD

CONE ACCESSORIES:

- CONE FEED WITH VIEW PORTS

- SIT DIRECTLY ON CONE

- MOVE TO STAND FOR TRANSPORT

- MOUNT POSITIONS FOR HPU W/ COOLER, LUBE UNIT, FEED RING TRANSPORT

CEDARAPIDS MVP380X CONE CRUSHER EQUIPPED AS PER BELOW:

- HIGH EFFIENCY - HEAVY DUTY TOLLER BEARING DESIGN

- HEAVY DUTY CAST STEEL BASE FRAME WITH REPLACEABLE WEAR LINERS

- FULLY GUIDED (DUAL ACTION) TRAMP RELIEF SYSTEM - INSTANTLY RESETS CRUSHER

SETTING WHEN TRAMP MATERIAL IS PASSED

- HYDRAULIC POWERED - THREADED UPPPER ASSEMBLY FOR QUICK CRUSHER SETTING

ADJUSTMENTS UNDER LOAD

- LUBRICATION OIL FLOW SAFETY SWITCH AND WARNING HORN 24 VOLT

- ENCLOSED HYDRAULIC SKID. PROVIDES POWER AND CONTROLS FOR TRAMP AND SETTING

ADJUSTMENT SYSTEMS

- HIGH FLOW MANIFOLD WITH (4 EA.), 5 GALLON GLOBALLY CERTIFIED (CE, CRN, AS1210

& ASTM ACCUMULATORS-PROVIDES REDUNDANT CYLINDER PROTECTION

- PINNED CYLINDER ENDS REMOVE QUICKLY FOR FAST CONE SEPARATION AND MANGANESE

CHANGE

- SEPARATE LUBE MODULE WITH ELECTRIC LUBE PUMP AND FILTER, CAN BE LOCATED

REMOTELY

- CRUSHER HOPPER

- CRUSHER TOOLS, LIFTING EYE, MANTLE WRENCH

- OIL HEATER 115 VOLT IN SUMP WITH AUTOMATIC OIL CIRCULATION SYSTEM

- OPERATION AND MAINTENANCE MANUAL INCLUDEING A C & S SAFETY MANUAL

- BOLT ON BRONZE V-SEAT LINER PLATES FOR MAIN PROTECTION

- HEAVY DUTY 2" DIAMETER CLEVIS BOLTS

- MANGANESE CONFIGURATION:

- COARSE-MEDIUM CONFIGURATION: 048003002401E MEDIUM MANTLE & 0480030067E COARSE

LINER

- BACKING MATERIAL INSTALLED

- DRIVEN SHEAVE INCLUDED

- ELECTRICAL: 460V, 3PH, 60HZ

- CONE CONTROLS:

- ACE8 ADVANCED AUTOMATED CONE CONTROL MODULE

- 100 FOOT TETHER

- CONE ANTI-SPIN:

- HYDRAULIC ANTI-SPIN (ACE8 CONTROLS)

- CONE OPTION:

- OPTIONAL BOLT-ON COUNTERWEIGHT GUARD

- PAINTED GRAPHITE GRAY (RAL 7024)

PAINT:

- URETHANE PREMIUM COATING, PAINTED GRAPHITE GRAY (RAL 7024) WITH SAFETY YELLOW

GUARDING

OWNERS MANUAL AND PARTS LIST

OPTIONS INCLUDED:

- QTY. (2) 36" X 18" X 18" TOOL BOXES

- NEW FIRESTONE 11R22.5 TIRES

- NAVIGATOR BELT TRAINER

- OVERFLOW CHUTE:

- OVERFLOW CHUTE FROM CONE FEED HOPPER

- ANTI-ROTATION POSTS

- COG BELT DRIVE:

- 2 SYNCHRONOUS SPROCKETS

- 2 TAPER LOCK BUSHINGS

- SYNCHRONOUS CONE DRIVE BELT

AES ELECTRICAL SWITCHGEAR FOR MVP380X RD CONE PLANT EQUIPPED AS PER BELOW:

- 60X60 NEMA 3R/4 ENCLOSURE AND COMPONENT PANEL

- CUSTOM CORD CAGE AND LEG KIT SETS OFF PLANT FOR OPERATION

- REINFORCED LIFTING EYES

- MANAUALLY OPERATED SAFETY START UP SIGNAL HORN

- ILLUMINATED EMERGENCY STOP PANIC BUTTON STYLE

- 600 AMP MAIN BREAKER

- 800 WATT PANEL HEATER

- ALL MOTOR CONTROL TO BE INSTALLED IN ENCLOSURE DOOR

300 HP CONE

- ABB PSTB REDUCED VOLTAGE SOFT STARTER

- AMMETER

- HOUR METER

- INTEGRATED TO ACE8 CONTROL SYSTEM

- WINDOW KIT FOR SAFE VIEWING OF MOTOR AMPS AND STARTER CODES

- 15 HP HYDRAULIC PUMP - NO CONTROL BUTTONS, CONTROLLED BY ACE8

SYSTEM

- 20 HP CONE FEED CONVEYOR - CONTROL BUTTONS IN DOOR - 60 AMP RECEPTACLE-FOR

CONVEYOR INTERLOCKED TO:

- 20 HP CONE DISCHARGE CONVEYOR - VIA MOTOR STARTER INTERLOCK

- CONE LUBRICATION - VIA ACE8 CONTROL, CONE UP TO SPEED - VIA ACE8

CONTROL

(1) SIZE 0 MOTOR STARTER:

- 3 HP CONE LUBE PUMP - NO BUTTONS – ACE8 CONTROLLED - 20 AMP

RECEPTACLE

(1) SIZE 00 MOTOR STARTER

- 1 HP CONE LUBE COOLING FAN - NO BUTTONS – ACE8 CONTROLLED

- CONTROL POWER ONLY TRANFORMER -CONSTANT VOLTAGE

10 KVA AUXILLIARY TRANSFORMER:

- INSTALLED TO CORD CAGE

- (2) 120 VAC, 20 AMP WEATHERPROOF GFCI RECEPTACLES

24 PIN PHOENIX CONNECTOR TO PROVIDE QUICK CONNECT/DISCONNECT OF ACE8 CONTROL

SYSTEM

- 100FT PARALLEL SINGLE CONDUCTOR POWER CORDS

- SAFTETY START HORN

GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS’ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR, PRIOR TO STARTUP OF EQUIPMENT OPERATIONS, CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
