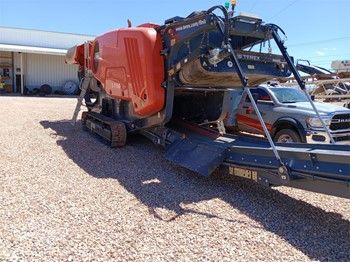

2022 FINLAY J-1160

Description

Hopper capacity: 5m³ (6.5yd³)

Feed height with standard hopper: 3.4m (11’ 2”)

Feed height with standard hopper and extensions: 3.7m (12’ 1”)

Vibrating grizzly feeder (VGF)

VGF Speed range: variable, 450-850 rpm

Hopper extensions hydraulic folding and hydraulic locking

Belt Width: 650mm (26”)

Working Angle: 22°

Hydraulically folds for transport

Standard Discharge Height: 2.1m (6’ 10”)

Stockpile capacity: 12m3 (15.7yds3) @ 40°

Terex chamber single toggle jaw crusher

Inlet width: 1000mm (40”)

Inlet gape: 600mm (24”)

Under jaw clearance: 540mm nominal

Drive arrangement: Hydrostatic with full reverse crush capability

Maximum Closed Side Settings (CSS): 145mm (5 45/64”)

Minimum Closed Side Settings (CSS): 40mm (1 1/2”) Demolition

and Recycling applications. 50mm (1 31/32”) quarry application

Reverse action for clearing blockages

Full hydraulic closed side setting adjust

Shoe Width: 400mm (16”)

Dual speed tracking with ‘soft start’

Gradeability: 30°

T-Link telematics hardware and software along with free seven

year data subscription are fitted and installed as standard.
