2022 IROCK TJ2950

Description

Crusher complete with the following:

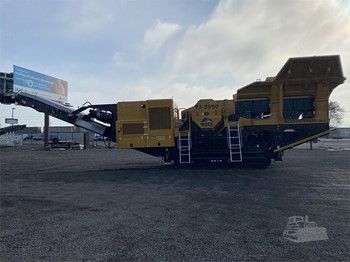

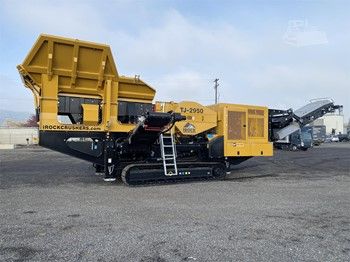

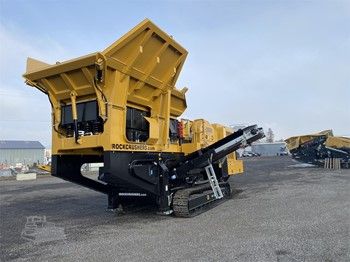

Heavy duty track mounted Jaw Crusher with 1270 (50in) x 735 (29in) single toggle jaw

I-beam plate fabricated chassis construction

Open chassis design for ease of maintenance-Fast setup time

The crushing chamber is comprised of the following-

Feed opening of 1270mm(50in)x735mm(29in)

Min opening of 51mm(2in)-Max opening 157mm(6.25in )

CSS ADJUST VIA HYDRAULIC WEDGES"

HOPPER EXTENSIONS - LARGE SIZE

BELT PROTECTION DEFLECTOR PLATE UNDER CRUSHER-MANUAL (REQUIRED WITH MAGNET

OVERBAND MAGNET ON MAIN CONVEYOR (TWIN POLE)

CHUTES INSTALLED ON THE MAIN CONVEYOR FOR OVERBAND MAGNET

Hopper loading dimensions 13ft 5in wide at back feed opening with large hopper extensions (8.9yd3)

Pan Feeder dimensions are 1164mm(45.8in) wide by 3075mm(121in)- hydraulic direct drive with adjustable speed

LONGER PAN FEEDER

FEEDER BOFAR 35-75MM (1 3/8 IN-2 3/4 IN) APERTURE

CAT TIER 4F C9.3B 375HP (280KW)

TWIN OIL COOLERS

48" wide Main Conveyor 1200mm 3-ply heavy duty belt - Raise/lower on main conveyor

SIDE CONVEYOR INSTALLED

SIDE DISCHARGE CONVEYOR (3-PLY BELT - 650mm(26in.).

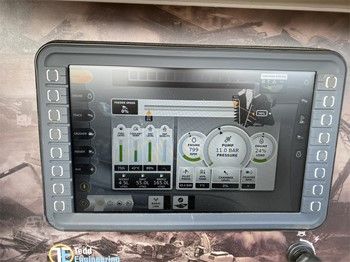

WIRED/WIRELESS REMOTE CONTROL ON TRACKS (COMPLETE WITH START/STOP FEEDER)

SAFETY BEACON LIGHTS (INCLUDED)
