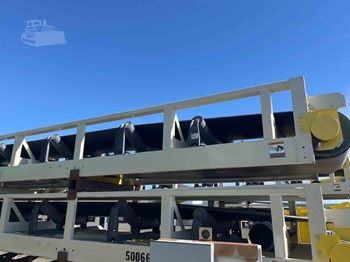

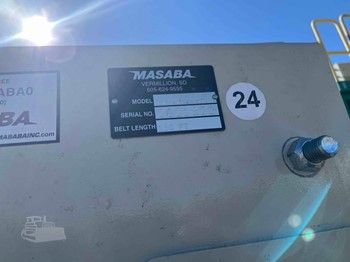

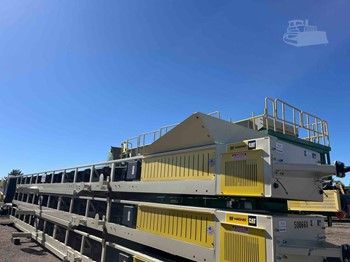

2022 MASABA 750 TPH

Description

2 15/16 SHAFT WITH DODGE SCM BRG

2-PLY 220PIW 3/16X1/16 CONV BELT

BELT SPEED - 350 FPM @ 18DEGREES

BELT SPLICE MECHANICAL STEEL FAS

BOTTOM CHORDS - 8" CHANNEL

CAPACITY - 750 TPH

CLASS I HEAD V-BELT DRIVE

CROSS MEMBERS1-1/2X1-1/2X3/16

DRIVE PULLEY - PPI 14"DIA

FIXED AXLE (2)11RX22.5 TIRES

FLARED HOPPER EXTENSIONS

GEAR REDUCER - DODGE TAII

HOPPER - 6' LONG W/ADJ FLASHING

MAIN FRAME - 27" DEEP TRUSS

MOTOR - WEG 20HP ELECTRIC

PINTLE STYLE TOWING EYE

RET IDLER GUARDS FIRST 3 RETURN

TAIL PULLEY - PPI 12" DIAMETER

TAIL SHAFT & BEARINGS 21/16SHFT

TAKE UPS - IN FRAME SCREW TYPE

TOP CHORDS - 4" X 2" X ¼" TUBE

TOWING/LIFT EYE

TUBULAR UNDERCARRIAGE

UPRIGHTS - 4" CHANNEL

VULCANIZED BELT SPLICE

Guards

Equipment-certification-code: NCR

Belt Upgrade - 3-ply: 330 PIW

Idler Upgrade Ppi: CEMA C IDLRS

Return Idlers - Ppi: CEMA B

Transition Idlers - Ppi: CEMA B

Troughing Idlers - Ppi: CEMA B
