2022 METSO NORDTRACK I1011

Description

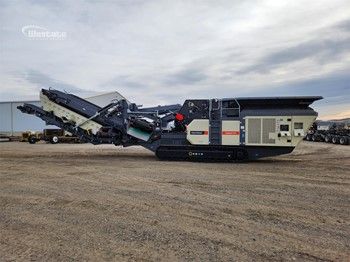

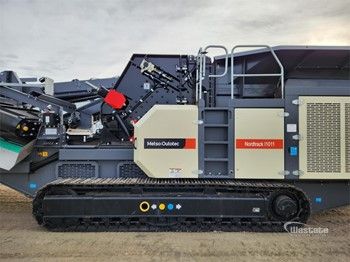

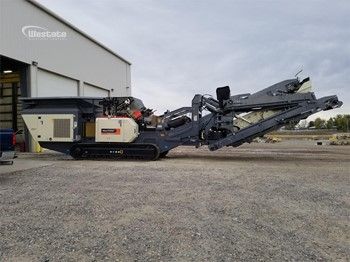

Metso Nordtrack I1011S Track Mounted Impact Crusher with Screen and Recirculation conveyor

Crusher: Max feed 16”

• Horizontal impact crusher

• 41" Diameter Rotor

• Feed opening 45” x 32”

• Hydraulic adjustable setting adjustment

• Hydraulic adjustable crusher lid

Feeder & Hopper:

• 14’ Long Horizontal vibrating feeder

• Hopper 8’ x 14’

• Grizzly bars tapered in feeder

• 5.5yd hopper capacity

• Bypass chute with flop gate

• Side conveyor 24” wide for grizzly bar throughs 9’ discharge height

Main Conveyor 48” wide

• Width 48”

• Length 33’

• Discharge height 12’ 4” with out screen

• Self Cleaning Magnet

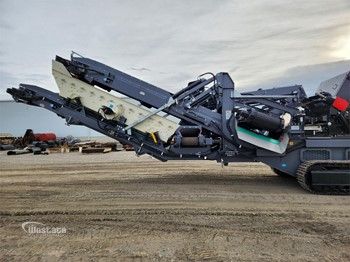

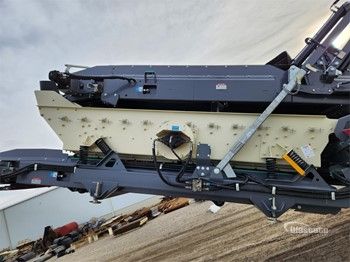

Screen Unit 5 X 12 Single deck:

• With Under screen conveyor 9’11”"' discharge

• With Cross Conveyor at the end of the screen

Recirculation Conveyor 20” wide

• 180 degree radial conveyor

• Adjustable speed

Caterpillar C9.3B 375HP Tier 4F diesel engine, PLC control system, Water spraying system, wireless remote
