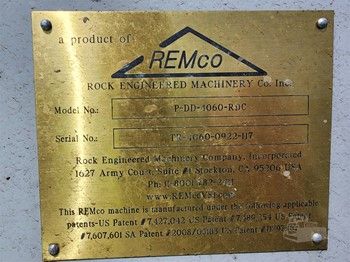

2022 REMCO SANDMAX 4060

Description

REMco Series 4060 SandMax DD VSI Crusher

Crusher is all HD fabricated steel construction with baseliners

Hydraulically raised circular receiving hopper with feed diverter plate and hopper swing locks

Heavy-duty cast feed tube assembly

One (1) 37" 4-Port, 14" open-sided rotor with all wear parts taper lock, bronze sleeve and cross-key

Oil-lubricated main shaft assembly with radial bearings and oil lines

Dual-action, integrated, Lubrication/Hydraulic system complete with oil tank, independent 2hp circulating oil

pump, independent 2hp hydraulic pump with pushbutton pendant, and safety devices

Fabricated Dual Drive support frame with four self-centering vibration isolation mounts

Two HD motor mounts with Screw-type v-belt tensioning

Hinged drive guards and drive tunnel extension with crusher sheave cover

Control package of vibration switch and hour meter

Crusher tools including rotor balancing machine, lifting plate, eye bolt, and two manuals

Dual Drive Assembly

1 - 8V - 12 groove crusher sheave with bushing

2 - 8V - 6 groove motor sheaves with bushings

12 - 8V 1900 V-belts

Two 300 hp, Electric Motors

1.15 service factor

Frame No. 449, 1800 RPM, 460 Volt, 3-phase, 60-cycle for vertical shaft down mounting

The motor is premium efficiency complete with alloy shaft and roller bearing, on D.E. for av-belt drive.

Price includes installation labor and mounting hardware

Lube System Heater

Thermostatically control silicone heating element

Mounted to oil tank of the REMco lubrication system.

Radiator Air-Type Heat Exchanger

Hoses and fittings integrated into the REMco circulating oil system

Thermally-controlled, motor-driven cooling fan.

Portable Chassis of all-welded wide flange beam construction

New tandem suspension fitted with new wheels 11.00 x 22.5 tires, air brakes.

Highway safety package including Lights, mud flaps, and reflective conspicuity tape.

Crusher Discharge Conveyor with 36" wide 3 ply belting, troughing idlers on (1)one (FT) foot centers in load area and 4ft centers thereafter, wing tail pulley, crowned lagged head pulley, 15 hp, TEFC, electric motor, and gearbox, also including headbox for controlled transfer of crushed material.

Crusher Discharge Hopper of rock-on-rock design, skirting, and access door.

Service Walkway with diamond plate decking, handrails, toe-boards around the crusher, including access ladder.

Hydraulic Leveling System for REMco Portable Chassis

Lifting/leveling package to raise the portable chassis for blocking without the aid of other lifting equipment

REMco's Hydraulic Leveling System complete with the following:

12-volt, electric motor-powered hydraulic pump, deep cycle 12-volt battery and battery box

Oil tank, hydraulic plumbing

Multi-lever control block for actuating individual hydraulic leveling legs

Including landing pads and safety pins

Dual Motor Starter Package

NEMA 3R enclosure approx 60"h x 48"w x 16"d

1000a MCB with rotary handle disconnect 65k SCCR

Branch -1 RVSS motor starter, 600a branch breaker 65k SCCR

Soft starter, 300 hp, 361 amp, 480 vac chassis

Heavy-duty rated - 450% current for 30 seconds, 115% continuous

Benshaw emx4i series soft starter, running duty bypass contactor

Branch -2 atl combination motor starter

600a branch breaker 65k SCCR, 400a@480v ac-3 rated contactor

Fused control power transformer, time delay relay

Door mounted items:

Soft starter keypad with cover

Start/stop pushbuttons for soft starter

Reset pushbutton for atl starter

Power-on pilot light, atl run pilot light, RVSS run pilot light

Terminal blocks for customer connections, ul listed
