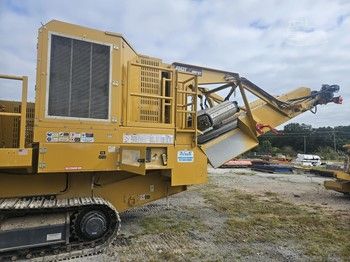

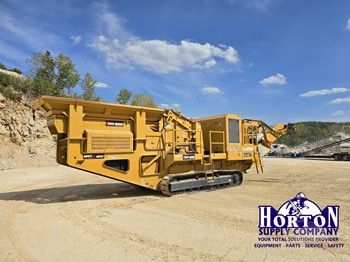

2022 SCREEN MACHINE 4043T

Description

CRUSHER

• 40” diameter rotor x 43” impact crusher

• Lid Crusher Relief System™ with 6” (152mm) raise feature

• Feed inlet opening: 43” (1,092mm) wide x 28” (711mm) high

• 2 adjustable curtains (apron wrench tool provided)

• Maximum primary curtain adjustment of 8” (203mm)

• 4-bar rotor design

POWER SYSTEMS and CONTROLS

• CAT® C9.3 376 HP Diesel Engine Tier IV Final diesel engine

• 150 gallon (568L) baffled hydraulic tank and oil cooler

• 200 gallon (757L) diesel fuel tank capacity

• Lockable control panel and engine compartment

VIBRATORY GRIZZLY FEEDER

• Automatic stop - start feed matched to crusher speed

• Feed height 11’-03” (3.43m)

• Feed length 13’ Long (3.96m)

• Feed width 40” (1.02m)

• US-made grade 80 steel 1/2” (12.7 mm) hopper walls

• AR400 grizzly bar material with 1.5” (38mm) nominal opening

• Grizzly/crusher bypass lever for fines removal

• Remote control vibratory feeder speed (600-850 RPM)

PERMANENT MAGNET

• Fully adjustable and reversible cross belt magnet

• Stainless steel chutes, stainless armor clad with flights

CONVEYORS

• 42” (1,067mm) 440 PIW main discharge conveyor belt

• Reversible main belt

• Martin® Pit Viper belt cleaner for main belt

• Impact bed lined with ultra-high molecular weight plastic

• 10’- 6” (3.2m) fines discharge height

• 24” (610mm) 220 PIW side discharge conveyor belt

• 7’-0” (2.13m) side discharge height

• Rubber disc return idlers

• Wing type tail pulleys

• Herringbone/lagged head pulley with belt adjuster

• 5” (127mm) troughing and return idlers

UNDERCARRIAGE and BUILD-OUT STRUCTURE

• Heavy-duty tracked undercarriage for jobsite mobility

• US-made grade 80 steel unibody frame construction

• 4 emergency shutoff safety stops

• Full stop button on wireless remote control

• Non-slip decking and grids and ladders for safety

• Remote control 8-button operation and travel

• Blow bar maintenance lifting tool

• Blow bar wear life maintenance measuring tool

LOADING OPERATION

• 8-Yard (7.32m) feeder

• 2-6 Cubic Yard loader (1.6m³ - 4.6m³)
