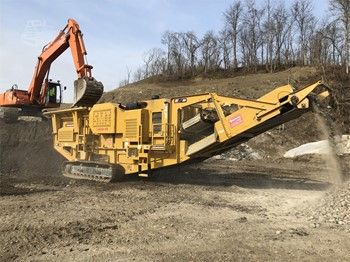

2022 SCREEN MACHINE 4043TR

Description

CRUSHER

40" diameter rotor x 43" wide (1,016mm x 1,092mm) impact crusher

Lid Crusher Relief System™ with 6" (152mm) raise feature

Feed inlet opening: 43" wide x 28" high (1,092mm x 711mm)

2 adjustable curtains (apron wrench tool provided)

Maximum primary curtain adjustment of 8" (203mm)

4-bar rotor design, 2 live (low chrome ceramic) and 2 inactive bars

SCREENS

5'-0" x 8'-0" (1.5m x 2.4m) top relief deck

5'-0" x 12'-0" (1.5m x 3.7m) bottom sizing deck

1/4" (6.35 mm) USA-made Grade 80 steel screen box walls

Smooth Start® Technology (US Patent #6,669,026)

POWER SYSTEMS and CONTROLS

Volvo®D11 355 HP (265kw) Tier IV Final diesel engine

150 gallon (568L) baffled hydraulic tank and oil cooler

175 gallon (662L) diesel fuel tank capacity

Lockable control panel and engine compartment

VIBRATORY GRIZZLY FEEDER

Automatic stop — start feed matched to crusher speed

Feed height: 11'-4"(3.46m) / Feed length: 13' (3.96m) /Feedwidth 5'-11"(4.56m)

1/2" (12.7mm) USA-made Grade 80 Steel hopper walls

AR 400 grizzly bar material with 1.5" (38mm) nominal opening

Grizzly/crusher bypass lever for fines removal

Remote control vibratory feeder speed (600-850 RPM)

UNDERCARRIAGE and BUILD-OUT STRUCTURE

Heavy-duty tracked undercarriage with 20" (500mm) wide pads for mobility

USA-Made Grade 80 steel unibody frame construction

4 emergency shutoff safety stops, plus full stop button on wireless remote

Remote control 8-button operation and travel

Blow bar maintenance lifting tool

Wear life maintenance measuring tool

PERMANENT MAGNET

Fully adjustable cross belt magnet

Stainless steel chutes

Stainless armor clad with flights

CONVEYORS

48" (1,219mm) 220 PIW front fines conveyor belt

42" (1,067mm) 440 PIW main discharge conveyor belt

Reversible main belt

Martin®Pit Viper belt cleaner for main belt

Impact bed lined with ultra-high molecular weight plastic (UHMW)

10'-11" (3.3m) fines discharge height

24" (610mm) 220 PIW side discharge conveyor belt

7'-0" (2.1m) side discharge height

Wing type tail pulleys

Herringbone/lagged head pulley with belt adjuster

5" (127mm) troughing and return idlers

LOADING OPERATION

8-Yard³ (6.11m³) feed hopper

2-6 Cu. Yard loader (1.5m³ - 4.6m³)

60 Month Capital Lease Estimated Payment: $11,612/month*
