2022 SUPERIOR LIBERTY 3363B

Description

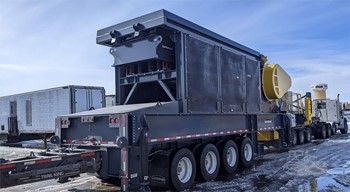

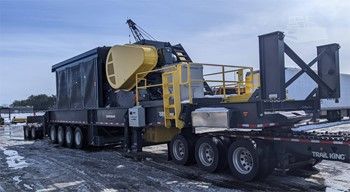

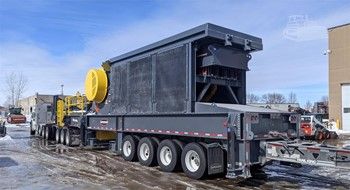

PORTABLE SUPERIOR LIBERTY 3363 JAW PLANT EQUIPPED AS PER BELOW:

PLANT SPECIFICATIONS:

- CONSTRUCTION: MAIN FRAME CONSTRUCTED OF WIDE FLANGE STRUCTURAL BEAMS

- CRUSHER FEED BOX: CONSTRUCTED OF 3/4" MS PLATE WITH 1/2" AR 400 WELD IN LINER

- FEED HOPPER CARTRIDGE: FEED HOPPER AND VGF CARTRIDGE IS BOLT-ON, AND MAY BE

REMOVED IF REQUIRED FOR ROAD TRANSPORT

- FEED HOPPER: CONSTRUCTED OF 3/4" MILD STEEL WITH 1/2" AR400 WEAR LINERS IN

BOTTOM 2/3 OF HOPPER. REINFORCED STEEL AND SLOPED SIDEWALLS, INCLUDES EXTERIOR

SIDE PANELS FITTED WITH CONVEYOR BELT RUBBER TO PREVENT ACCES TO VGF AND

ASSIST IN KEEPING DEBRIS OR FOREIGN MATERIAL FROM ENTERING THE AREA.

- HOPPER WINGS: NOT INCLUDED

- GRIZZLY FINES CHUTE: CONSTRUCTED OF 1/4" A36 PLATE WITH 1/4" AR400 WELD-IN

LINER

- FINES CHUTE ACCESS DOOR: HINGED SIDE ACCESS DOOR

- WALKWAY PLATFORMS: LOWER CRUSHER OBSERVATION AND MAINTENANCE PLATFORM AND

UPPER CRUSHER OBSERVATION PLATFORM

- ACCESS GATES: SELF CLOSING HINGED GATES AT ALL WALKWAY ACCESS POINTS

- TOOL BOX: ALUMINUM TOOL BOX

- PAINT: PAINTED GRAPHITE GRAY (RAL 7024) WITH SAFETY YELLOW HANDRAILS, GUARDS

AND LADDER

CHASSIS SPECIFICATIONS:

- AXLE: QUAD AXLE WITH (16) 11RX22.5 RADIAL TIRES AND 8' SPACING

- SUSPENSION: AIR RID SUSPENSION

- BRAKES: COMPLETE AIR BRAKE PACKAGE

- FIFTH WHEEL: INCLUDED

- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS

- MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS

- CRIBBING LEGS: (6) FIXED STRUCTURAL STEEL CRIBBING LEGS

- INTERMEDIATE CRIBBING: (2) SWING DOWN INTERMEDIATE CRIBBING POINTS

- LANDING GEAR: (4) HYDRAULIC LIFT-ONLY 36" STROKE LEVELING LEGS WITH 9 HP HONDA

POWER UNIT

- TOW EYE: TOW EYE LIFTING LUGS INLCUDED

- LEVEL ASSIST: NOT INCLUDED

- BOOSTER AXLE: EQUIPPED WITH PIN CONNECTION AT REAR OF CHASSIS TO ACCEPT

CUSTOMER SUPPLIED, TKAB2 BOOSTER

JAW SPECIFIATIONS:

- JAW SIZE: LIBERTY 3363 BOLTED FRAME JAW

- JAW DRIVE: 200 HP TEFC CRUSHER DUTY MOTOR

- OPERATING SPEED: 230 RPM

- CAPACITY RANGE: 297-837 STPH

- NOMINAL FEED OPENING: 33" X 63"

- CLOSED SIDE SETTING: 3.2" - 8"

- MAX FEED SIZE: 25.6"

- JAW DIES: STANDARD BROAD TOOTH, 18% MANGANESE PITMAN AND STATIONARY JAW DIES

WITH LIFTING EYES BUILT IN

- V-BELT DRIVE: 10 GROOVE 8V-BELT WITH DRIVE GUARD

- FLYWHEEL GUARDS: DRIVE AND NON-DRIVE SIDE FLYWHEEL GUARDS INCLUDED

- SETTING ADJ AND HPU PACKAGE: HYDRAULIC RELIEF SYSTEM WITH CONTROL PACKAGE,

INCLUDES HPU, CONTROLS FOR HYDRAULIC TOGGLE, CSS SETTING ADJUSTMENT AND

HYDRAULIC TENSION

- AUTO GREASE SYSTEM: GREASE PUMP ON TIM TO AUTO GREASE BEARINGS

- BEARING SENSORS: NOT INCLUDED

VGF SPECIFICATIONS:

- VGF SIZE: SUPERIOR INTREPID 60" X 20' VIBRATING GRIZZLY FEEDER

- VGF MOTOR: 50 HP TEFC

- VGF V-BELT DRIVE: WITH DRIVE GUARD

- PAN LINER: REPLACEABLE 1/2" THIS AR LINERS

- GRIZZLY CARTRIDGE: 6' LONG GRIZZLY BAR CARTRIDGE WITH ADJUSTABLE SPACING

- GRIZZLY MOUNTING: HORIZONTALLY 0 DEGREE MOUNTED GRIZZLY

- SPRINGS: INBOARD SPRING MOUNT ARRANGMENT

- GRIZZLY SPACING: 3" / 76MM NOMINAL OPENING

OPTIONS INCLUDED IN PRICE:

- HYDRAULIC LEVLING LEGS: HYDRAULIC LIFT-ONLY LEVELING LEGS WITH 9 HP HONDA

POWER UNIT

- LOWER OBSERVATION PLATFORM: OBSERVATION/SERVICE PLATFORM FOR ACCES TO JAW

AUXLILIARY SYSTEMS

- UPPER OBSERVATION PLATFORM: UPPER OBSERVATION PLATFORM FOR VIEWING INTO THE

JAW, INCLUDES ACCESS FROM LOWER PLATFORM

- SELF CLOSING HINGED GATE: SELF CLOSING HINGED GATES AT ALL WALKWAY ACCESS

POINTS IN LIEU OF SAFETY CHAIN

- STEEP ANGLE STAIRS: FOLDING STEEP ANGLE STAIRS FOR ACCESS TO WALKWAY

- TOOL BOX MOUNTED ON CHASSIS

- SPLIT QUAD AXLE: SPLIT QUAD AXLE WITH (16) 11RX22.5 RADIAL TIRES AND 8'

SPACING

- AIR RIDE SUSPENSION: AIR RIDE AXLE SUSPENSION

- TOW EYE: TOW EYES AND PULLING LUGS

- AUTO GREASE SYSTEM: GREASE PUMP ON TIME TO AUTO GREASE BEARINGS

ELECTRICAL SWITCHGEAR FOR PIONEER 3363 JAW PLANT:

- NEMA 4 ENCLOSURE

- 600 AMP MAIN WITH OPERATOR

- 200 HP SOFT START FOR JAW

- 50 HP VFD FOR FEEDER

- 7.5 HP FOR HYD TOGGLE

- (1) 20 HP SPARE WITH 60 AMP RECEPT (PLUG SHIPPED LOOSE)

- (1) 100 AMP FEED BREAKER WITH 100 AMP RECEPT (PLUG SHIPPED LOOSE)

- (5) KVA TRANSFORMER WITH 110V OUTLET

- E STOP, HOUR METER, MANUAL SAFETY HORN, ALL BUTTONS IN

DOOR.

- SPEED POTENTIOMETER.

- SG SITS 30FT OFF PLANT, TRANSPORTS ON DECK, 150FT SINGLE CONDUCTOR POWER CORD. - 900' OF 2/0-W (PARALLEL CORDS) 150' OF 4/0-W FOR GROUND

** CORD IS ID E59843 **

CHASSIS S/N# 2053787

6020 VGF S/N# 2055700

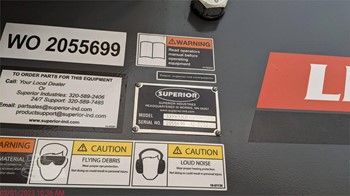

3363 JAW S/N# 2055699

- GUARDING - WE DO NOT WARRANT THAT OUR GUARDS WILL MEET ALL

LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE THEM

CHECKED BY A LOCAL INSPECTOR
