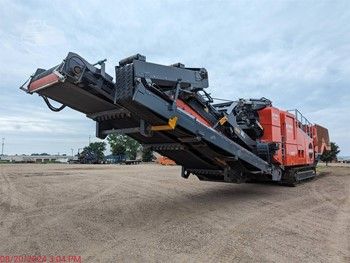

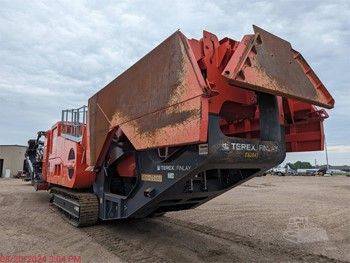

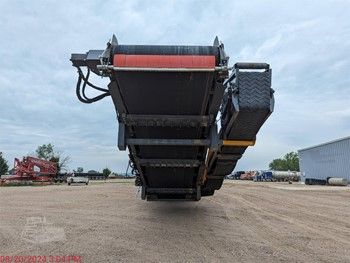

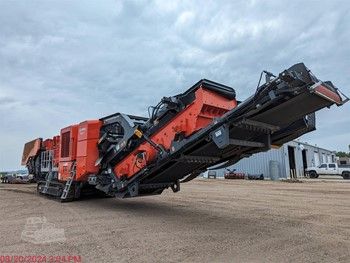

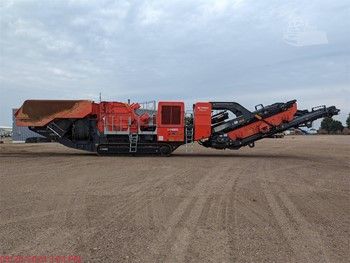

2022 TEREX FINLAY I140RS

Description

FINLAY I-140RS TRACKED IMPACTOR PLANT EQUIPPED AS PER BELOW:

ENGINE:

- TIER 4 FINAL: SCANIA DC13 368KW (500HP) ENGINE

IMPACT CHAMBER:

- TEREX CR032 IMPACT CHAMBER

- FULLY HYDRAULICALLY ASSISTED APRON SETTING AND HYDRAULIC APRON RELEASE

- MANUAL RAISE CHAMBER FLAP ALLOWING EXTRA INLET CLEARANCE

- 4 BAR ROTOR - TOOL STEEL BLOW BARS 2 HIGH & 2 LOW

- DIRECT DRIVE VIA CLUTCH

- DRIVE BELT TENSIONER WHEEL

- BLOW BAR LIFTING TOOL SUPPLIED

- TIP SPEED RANGE 35-44 M/SEC (115-144FT./SEC)

- SMALLER DRIVE PULLEY FITTED TO GIVE A ROTOR TIP SPEED RANGE OF 31-39M/SEC

(102-128FT./SEC) STANDARD LARGE PULLEY STILL DISPATCHED WITH MACHINE

- HYDRAULIC RAISE OF CHAMBER INLET FLAP

- ROTOR FITTE WITH (2) FULL MATENSITIC CERAMIC & 2 LOW MARTENSITIC BLOW BARS

HOPPER & FEEDER:

- VGF FIXED HOPPER

- STEPPED GRIZZLY FEEDER WITH INTEGRAL PRE-SCREEN, STANDARD 50MM SPACING

- MESH APERTURE ON GRIZZLY FEEDER: 38MM (1.50")

- SELECTABLE DISCHARGE TO BY-PASS CONVEYOR OR MAIN CONVEYOR

- BLANKING MAT FOR VGF

- PRE-SCREEN TOP DECK FITTED WITH SIDE TENSIONED MESH, 30MM APERTURE STANDARD

- INDEPENDENT PRE-SCREEN C/W HYDRAULICALLY FOLDING AND LOCKING HOPPER AND

BLANKING MAT, 50MM CASSETTE SPACING * 38MM MESH AS STANDARD

- INDPENDENT PRE-SCREEN HOPPER EXTENSIONS

- PRE-SCREEN PUNCH PLATE OPTIONAL SPACING - 25MM/50MM/75MM - NEED TO SPECIFY

MAIN CONVEYOR:

- 1300MM (51") BELT FULL LENGTH

- PIPED FOR OVERBAND MAGNET

- HYDRAULIC RAISE/LOWER FOR MAGNET

- UNDER CRUSHER VIBRATORY FEEDER WITH WEAR RESISTANT STEEL LINERS (C/W SHORTENED

MAIN CONVEYOR)

AUXILARY:

- BYPASS CONVEYOR WITH 80MM WIDE PLAIN BELT, DISCHARGING TO THE RHS OF THE

MACHINE

- TWIN POLE OVERBAN MAGNET C/W STAINLESS STEEL SKIRTING & STAINLESS STEEL

DISCHARGE CHUTE, DISCHARGING RHS OF THE MACHINE

RS COMPONENTS:

- 4.88M X 1.52M (16' X 5') SINGLE DECK AFTER SCREEN C/W 40MM MESH AS STANDARD

UNLESS OTHERWISE STATED

- 500MM (20") WIDE BELT TRANSFER CONVEYOR

- 500MM (20") WIDE BELT HYDRAULIC FOLDING RE-CIRCULATING CONVEYOR ABLE TO SLEW

FOR STOCKPILING OVERSIZE MATERIAL

- 1400MM (55") WIDE BELT FINES CONVEYOR

- RAPID DETACH AFTER SCREEN SYSTEM FOR FLEXIBILITY

- BELT WEIGHER BELT SCALE

CLIMCATE SPEC:

- STANDARD OILS (RECOMMENDED FOR AMBIENT TEMPERATURES BETWEE -5 TO +30 DEG. C

DUST SUPPRESSION:

- PIPED FOR DUST SUPPRESSION C/W SPRAY BARS

- WATER PUMP NOT INCLUDED

ELECTRICAL:

- EMERGENCY STOPS

- HAND HELD TRACK CONTROL SET WITH CONNECTION LEAD

- RADIO REMOTE SYSTEM: OPERATIONAL CONTROLS OF MACHIN (AUTO START/STOP) & TRACK

MOVEMENT

- PRESSURISED AIR SYSTEM FOR ELECTRICAL CONTROL CABINET

GENERAL:

- SAFETY GUARDS IN COMPLIANCE WITH MACHINERY DIRECTIVE

- AUXILIARY DRIVE
