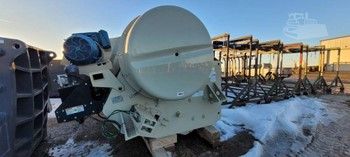

2023 ASTEC PIONEER 2650

Description

THE PIONEER® SERIES OF JAW CRUSHERS REPRESENTS THE VERY LATEST IN JAW CRUSHER TECHNOLOGY.

Engineered to be the highest-capacity jaw crusher on the market, the Pioneer® Jaw Crusher will deliver up to 25 percent more tons per hour than comparable jaw crushers. Pair that with heavy-duty flywheels for reduced horsepower requirements and class-leading stroke for higher capacity and you have a machine that will help you squeeze every cent of profit out of your operation.

Eccentric Shaft Assembly

- AISI 4150 solid steel eccentric type

- Cast steel pitman design

- Lubricated spherical roller self-aligning type with straight bore pitman bearing

- Saddle block mounted main bearing housings

Flywheel

- Ductile iron 50” diameter

- Grooveless flywheel

Jaw Dies

- Manganese steel with machined back

- Multiple configurations available

Adjustment and Toggle

- Hydraulic dual wedge

- Auto-adjust tension rods with electric/hydraulic controls

- Ductile iron toggle Base

- Fabricated steel plate

- Stress relieved

- Abrasion-resistant steel side liners

- Three (3) piece bolt-on side liners

- Reversible side liners
