2023 CEDARAPIDS MVP380X

Description

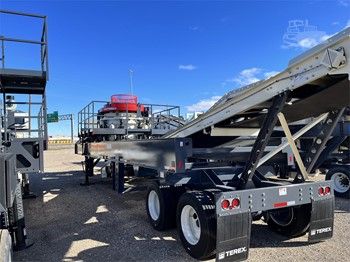

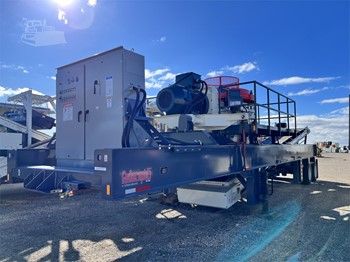

New Terex Cedarapids MVP 380X Portable Plant, TEREX® MVP380X Rollercone, Single 300 hp (224 kW) crusher motor with easy adjust cone crusher drive, 42" x 34'6" (1067 x 10,515 mm), 15 hp (11 kW) discharge “straight-line” conveyor, 3-ply conveyor belt with vulcanized belt splice, Mesh cone feed hopper extension, Service platforms around crusher with guard rails and access ladder, Easy maintenance features; Ratchet cone drive belt tensioning, Remote grease lines, Ground access cone lubrication module, Emergency stop buttons on both sides of frame, Tandem axle spring suspension, Eight 295/75 R22.5 tires, Lockable 4' (102 mm) long side-mounted storage box "Medium-Medium" Configuration: 048003002401E Medium Mantle & 0480030073E Medium Liner, RLC Basic Control Relay Logic, Mechanically Shear Bolt Sprag Clutch, Bolt-on Counterweight Guard, Manual IEC Style Push Button Switchgear Panel: Same as above escept without CCM automation and diagnostics, includes door mounted manual push botton motor controls with 120V controls. with (2) Additional Starters

Set of Two (2) manual crank style landing jacks
