2023 CEMCO TURBO 80

Description

New Cemco Model T80 Vertical Shaft Impact Crusher

• Cemco Model 80 VSI

• Drive Motor - 400HP 460v 1800rpm

• Rotor speed range 1250RPM to 1650RPM

• Pedestal Lube Oil System system

• Low oil Level Safety Shut Down Switch

• Lube Oil Cooler (Forced Air)

• Lube Oil Heater

• Vibration Cut off Switch

• Temperature Safety Shut Down Switch

• 360 Degree Swing Lid

• Crusher with bolt in wear liners

• Mechanical Twin Screw Adjustable Hopper

• Drive Belts 8V-1700

• Sheave and Bushing

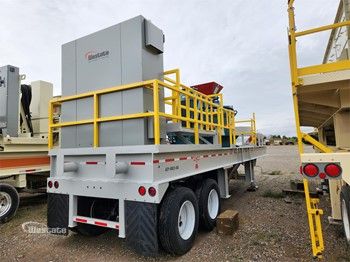

Tandem Axle Chassis:

• Heavy duty 18”x 58# wide flange beam

• Tandem axle chassis

• Under crusher hopper

• Hand Crank jacks

• Four ground support stands with jacking pads

• Diamond plated catwalk, access ladder and removable railing

• Guarding

• Standard 5th wheel PL, air brakes both axles, lights, & mud flaps.

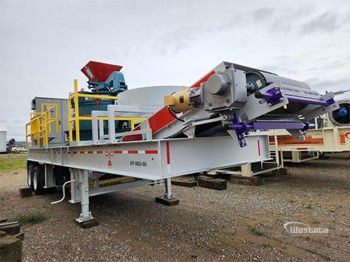

42” Under Crusher Conveyor:

• 7.5 HP Baldor Electric Motor

• 42” wide straight under crusher end discharge conveyor

• 3 Ply belt

• CEMA rated idlers

• Belt Cleaner

• Vulcanized lagged head pulley, self cleaning wing tail pulley

• Formed skirt board rubber

Electrical starters and Controls with 400HP VFD for Crusher
