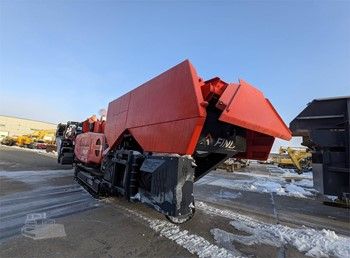

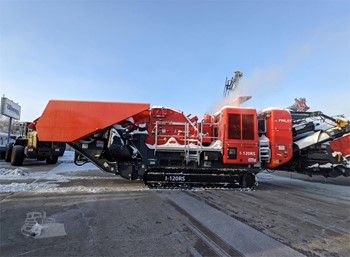

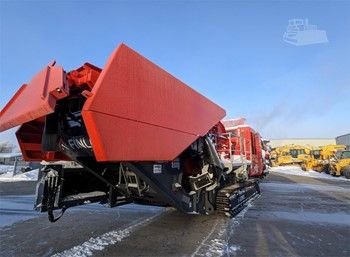

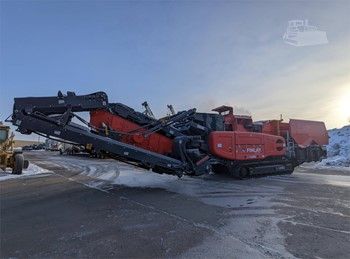

2023 FINLAY I-120RS

Description

FINLAY I-120RS TRACKED IMPACTOR PLANT EQUIPPED AS PER BELOW:

ENGINE:

- TIER 4 FINAL/STAGE IV: SCANIA DC9 257 KW (350 HP) ENGINE

IMPACT CHAMBER:

- TEREX CR028 IMPACT CHAMBER

- FULLY HYDRAULICALLY ASSISTED APRON SETTING AND HYDRAULIC APRON RELEASE

- MANUAL RAISE CHAMBER FLAP ALLOWING EXTRA INLET CLEARANCE

- 4 BAR ROTOR - MARTENSITIC CERAMIC BLOW BARS 2 HIGH AND 2 LOW

- DIRECT DRIVE VIA CLUTCH

- DRIVE BELT TENSIONER WHEEL

- BLOW BAR LIFTING TOOL SUPPLIED

- DRIVE PULLEY TO SUIT HIGHER SPEED RANGE

- SMALLER ENGINE CHAMBER DRIVE PULLEY FITTED TO GIVE LOWER SPEED RANGE. STANDARD

LARGE PULLEY STILL DISPATCHED WITH THE MACHINE

HOPPER & FEEDER:

- VGF FIXED HOPPER

- STEPPED GRIZZLY FEEDER WITH INTEGRAL PRE-SCREEN, STANDARD 50MM SPACING

- MESH APERTURE ON GRIZZLY FEEDER: 38MM

- SELECTABLE DISCHARGE TO BY-PASS CONVEYOR OR MAIN CONVEYOR

- BLANKING MAT FOR VGF

INDEPENDENT PRE-SCREEN:

- INDEPENDENT PRE-SCREEN C/W HYDRAULICALLY FOLDING AND LOCKING HOPPER AND

BLANKING MATT. 50MM CASSETTE SPACING & 38MM MESH AS STANDARD - MESH APERTURES

AVAILABLE UPON REQUEST

- INDEPENDENT PRE-SCREEN HOPPER EXTENSIONS

- PRE-SCREEN PUNCH PLATE OPTIONAL SPACING 63MM

MAIN CONVEYOR:

- 1100MM (43.3") BELT FULL LENGTH

- UNDER CRUSHER VIBRATORY FEEDER WITH WEAR RESISTANT STAINLESS STEEL LINERS (C/W SHORTENED MAIN CONVEYOR)

AUXILIARY:

- HYDRAULIC RAISE/LOWER FOR MAGNET

CONVEYORS:

- PIPED FOR OVER BAND MAGNET

- BYPASS CONVEYOR WITH 650MM WIDE PLAIN BELT, DISCHARGING TO THE RHS OF THE

MACHINE

- TWIN POLE OVER BAND MAGNET C/W STAINLESS STEEL SKIRTING & STAINLESS STEEL

DISCHARGE CHUTE, DISCHARGING TO RHS OF THE MACHINE

RS COMPONENTS:

- 3.663 X 1.52M (5' X 12" 2-DECK SCREEN)- CLOTH NOT INCLUDED

- 500MM (20") WIDE BELT SINGLE TRANSFER CONVEYOR COLLECTING MATERIAL FROM BOTH

DECKS

- 500MM (20") WIDE BELT HYDRAULIC FOLDING RE-CIRCULATING CONVEYOR ABLE TO SLEW

FOR STOCKPILING OVERSIZE MATERIAL

- 1400MM (55") WIDE BELT FINES CONVEYOR

- RAPID DETACH AFTER SCREEN SYSTEM FOR FLEXIBILITY

- BELT WEIGHER BELT SCALE INSTALLED

- ADDITIONAL TRANSFER & STOCKPILE CONVEYOR FOR COLLECTING MATERIAL FROM EACH

INDIVIDUAL DECK OF SCREEN BOX, GIVING MIDDLE GRADE PRODUCT

CLIMATE SPEC:

- STANDARD OILS (RECOMMENDED FOR AMBIENT TEMPERATURES BETWEEN -5 TO +30 DEG. C)

DUST SUPPRESSION:

- PIPED FOR DUST SUPPRESSION C/W SPRAY BARS

ELECTRICAL:

- EMERGENCY STOPS

- HAND HELD TRACK CONTROL SET WITH CONNECTION LEAD

- T-LINK TELEMETRY SYSTEM FITTED C/W 7 YEAR DATA SUBSCRIPTION

- RADIO REMOTE SYSTEM: OPERATIONAL CONTROLS OF MACHINE (AUTO START/STOP) & TRACK

MOVEMENT

- PRESSURIZED AIR SYSTEM FOR ELECTRICAL CONTROL CABINET

GUARDING:

- GUARDING: FOR DRIVE AND TAIL PULLEYS, GUARDS MAY NOT MEET ALL LOCAL CODES;

CUSTOMER IS RESPONSIBLE TO HAVE GUARDING INSPECTED.
