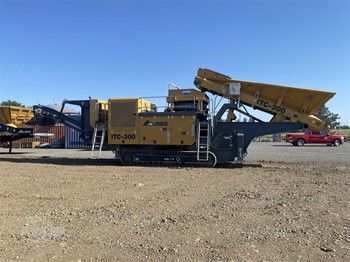

2023 IROCK ITC300

Description

CRUSHING CHAMBER…

• Metso MC300 Cone Crusher

• Feed opening: 41” (1050mm)

• Crusher input speed: 750 - 950 rpm

• Crusher Drive: Direct drive

• Closed side setting adjustment: Hydraulic

• Level sensor: Ultrasonic

• Throw: 3.3” (84 mm) at discharge with new liners

• Power required: 300 Hp

FEEDER…

• Feeder opening width: 41” (1050 mm)

• Feeder drum crs.: 19’ – 8.2” (6.0 m)

• Drive: Hydraulic

• Feeder belt width: 48” (1200 mm)

• Motor: Danfoss OMSS 125

• Gearbox: Bonfig 809 W2 24.2:1

• Flow rate: 33.8 GPM (128 LPM)

• Adjustable speed: Yes

• Maximum speed: 42 rpm

HOPPER…

• Length: 12’ – 4.9” (3.78 m)

• Width: 7’ – 2” (2.2 m)

• Volume: 6.5 yd3 (5 m3) levelled off, 8.1 yd3 (6.2 m3) heaped

• Material: ¼” sides + 3/8” Hardox® liners

MAIN CONVEYOR…

• Stockpile height: 12’ – 9” (3.887 m)

• Belt width: 48” (1200 mm)

• Belt spec: Plain 500/3 8+2

• Drive drum dia.: 13.7” (350 mm)

• Tail drum dia.: 10.6” (270 mm)

• Motor: OMV800

• Flow rate: 23.7 GPM (89.6 LPM)

• Maximum speed: 112 rpm

• Angle adjustable: YES

• Quick release: YES

POWERUNIT AND HYDRAULICS

• Engine: CAT C13B TIER 4F/STAGE V

• Engine power: 536HP

• Cone drive clutch: PT-tech HPTO14TF1

• Flywheel Pump 1 (Tracks/Feeder): Kawasaki K3VL80

• Flywheel Pump 2 (Tracks/Main conveyor): Kawasaki K3VL80:

• LH PTO Pump 3 (Auxiliary/Lube/pilot): Turolla 29/29/10

• Total system flow (max): 88.5 GPM (335 LPM)

• Hydraulic tank capacity: 211 gal (800 L)·

ELECTRICS…

Emergency stops: 4 off, 2 feeder, 2 power unit

Chassis cabling: Armored cable

Start Siren: YES – 10 sec delay

Control panel: Tedd Engineering / IFM

Engine shutdowns:

· Low oil pressure

· High water temp

· Air filter blockage (selectable)

· Fuel contamination

· Low hydraulic tank level

· Low lube oil flow

· Low lube oil pressure

· High lube oil temperature

· High hydraulic oil temperature

Radio control tracks and feeder: STANDARD

Pendant track control: YES – plugged in control cabinet

TRACKS…

• Width: 15.7” (400 mm)

• Length: 13’ – 5.4” (4.1 m) crs

• Height: 32” (817 mm)

• Gearbox: Bonfiglioli 711

• Ratio: 144:1

• Motor: Rexroth A2FE90

• Speed max: 0.93 mph (1.50 kph)

• Flow rate: 40.2 GPM (152 LPM)

• Multiple speeds:Three speed system selectable at control panel with smooth start/stop

SAFETY FEATURES…

• External belt alignment points

• External grease points

• Engine safety shutdown systems

• Full safety guarding for nip points
