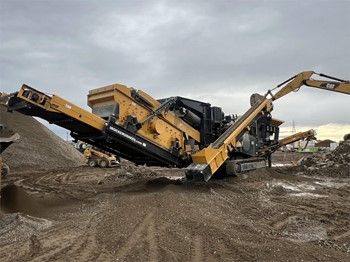

2023 IROCK TC15CC

Description

FEATURES:

HSI Crushing Chamber...

Feed opening: 43 x 38.75” (1092 mm x 984 mm)

Blow Bars: 4 Bar Rotor – 2 Blow Bars 2 Dummy Bars

Crusher Drive: Banded V-Belts

Crusher design HP: 200 HP

Crusher RPM Range: 630-660 RPM

Aprons: 3 Aprons – 2 Adjustable 1 Fixed

Maximum Feed Size: 24”

Grizzly By-Pass Conveyor...

Belt Width: 24” (610 mm)

Conveyor Length: 26’ 10” (8.18 m)

Head Pully Dia: 10” (254 mm)

Tail Pulley Dia: 10” (254 mm)

Belt Cleaner: 24” primary cleaner

Direct Drive Hydraulic Motor

Cema B, 4” dia. 24” W idlers

Cema B, 4” dia. 24” W returns

Belt Speed: 350 fpm

Hopper...

Length Overall: 12’ – 6” (3.81 m)

Width Overall: 11 - 4” (3.45 m)

Hopper Capacity: 9 cubic yards

Material: 1/2inch AR400

Prescreen...

Prescreen width: 43.5” (1.105 m)

Prescreen length: 60.0” (1.524 m)

Drive: Direct Drive Hydraulic Motor

Grizzly section opening: Tapered 1.0” – 1.5” ( 25-38 mm)

Grizzly Section length: 67 ” (1.70 m)

Bottom Deck Mesh: 49.3 “x 43.7” ( 1257 mm x 1110 mm)

Running Speed: 950 rpm

Jog Speed: 550 rpm

Tracks...

Track Length: 12’ - 5- 9/16” (3.80 m)

Shoe Width: 19.75” (502 mm)

Height: 2’ - 8.75” (832 mm)

Drive: Two Speed - .68 mph – 1.2 mph

Gearbox: Bonfiglioli Planetary Gearbox

Motor: Kayaba Two Speed Motor

Fines Conveyor...

Belt Width: 48” (1219 mm)

Conveyor Length: 40’ 7”” (12.37 m)

Belt Cleaner: 48” with twist tensioner

Drive Drum dia.: 12” (305 mm)

Tail Drum dia.: 10” (254mm)

Drive: Hydraulic Direct Drive

CEMA B, 4” dia. x 48” W Idlers

CEMA B, 4” dia. x 48” W Returns

Belt Speed: 350 fpm

Magnet And Chute...

Model: IMI – Electric Magnet

Discharge Chute Width: 36” Wide

Grizzly By-Pass Conveyor...

Belt Width: 24” (610 mm)

Conveyor Length: 26’ 10” (8.18 m)

Belt Cleaner: 24” Primary Belt Cleaner

Drive Drum dia.: 10” (254 mm)

Tail Drum dia.: 10” (254 mm)

Drive Type: Direct Drive Hydraulic Motor

Belt Speed: 350 fpm

CEMA B, 4” dia. 24” W Idlers

CEMA B, 4” dia. 24” W Return Idlers

Top Deck Transfer Coneyor...

Belt Width: 18” (457 mm)

Conveyor Length: 17’ - 1” (8.18 m)

Belt Cleaner: 18” Primary Belt Cleaner

Drive Drum dia.: 8” (203mm)

Tail Drum dia.: 8” (203 mm)

Drive Type: Direct Drive Hydraulic Motor

Belt Speed: 350 fpm

CEMA B, 4” dia. 18” W Idlers

CEMA B, 4” dia. 18” W Return Idlers

2nd Deck Conveyor...

Belt Width: 18” (457 mm)

Conveyor Length: 17’- 1” (8.18 m)

Belt Cleaner: 18” Primary Belt Cleaner

Drive Drum dia.: 8” (203 mm)

Tail Drum dia.: 8” (203 mm)

Drive Type: Direct Drive Hydraulic Motor

Belt Speed: 350 fpm

CEMA B, 4” dia. 18” W Idlers

CEMA B, 4” dia. 18” W Return Idlers

Returns / Stacking Conveyor...

Belt Width: 24” (610 mm)

Conveyor Length: 64’ 4” (19.61 m)

Belt Cleaner: 24” Primary Belt Cleaner

Drive Drum dia.: 14” (356 mm)

Tail Drum dia.: 10” (254 mm)

Drive Type: Direct Drive Hydraulic Motor

Belt Speed: 350 fpm

CEMA B, 4” dia. 24” W Idlers

CEMA B, 4” dia. 24” W Return Idlers

Powerunit And Hydraulics...

Engine Tier 4: CAT® C9

Engine Power: 415 HP (310 kW)

Engine Speed: 2200 rpm

Hydraulic System 1: Variable Piston Pumps for plant

functions

Hydraulics System 2 Gear Pump for apron tensioning and

cooling circuit

ELECTRICAL

Emergency stops: Twist Release E-Stops

Horn: Sentry Siren 113 Decibels

Power: 24 Volt DC Control Voltage

Engine Shutdowns: High clutch oil temperature

Controls: Remote with Plus + 1 Controller

Other...

Rear Stabilizing Legs: Hydraulic

Front Stabilizing Legs: Hydraulic

Dust Suppression: H2O spray system at crusher inlet and outlet

Magnet...

48” x 36” cross frame magnet and chute

Hydraulic Filtering Kidney Loop System

EXCLUDES: Screen media or its installation, freight, taxes, fees or permits.
