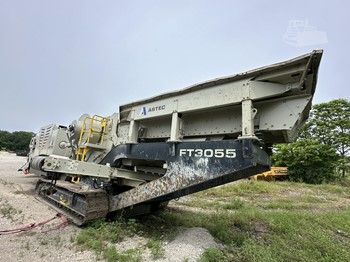

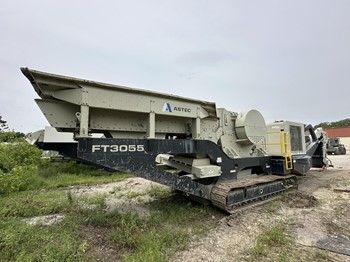

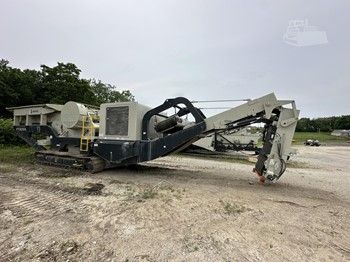

2023 KPI FT3055

KPI | FT3055

USD $888,750

Product Location: Oklahoma City, Oklahoma 73127

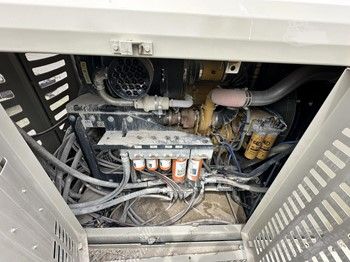

ENGINE – CAT C13, 440 HP, Tier IV 1800 RPM

CONTROL SYSTEM – radio remote / tether

PIONEER JAW CRUSHER – 3055 automatic hydraulic dual wedge adjust CSS, hydraulic

drive for crusher, full belly jaw dies and remote grease lube (NOTE: Set jaw

crusher close side setting at 4” peak to peak unless otherwise noted.)

TRACK UNDERCARRIAGE – track width 600 mm (23.6”)

FEEDER – 50” x 18’, 5’ step deck grizzly bars 2½” spacing, loading hopper with

fixed walls and three way by-pass chute

UNDER CRUSHER CONVEYOR – 48” x 40’ hydraulic drive, 360 PIW 4 ply endless belt,

easily removable for maintenance

DUST SUPPRESSION SYSTEM with manifold for customer water source

HYDRAULICS – includes hydrostatic pump group and circuit, one (1) 12 GPM

auxiliary circuit for side delivery conveyor (less side delivery conveyor), one

(1) 20 GPM auxiliary circuit, and hydraulics for magnet (less magnet)

PAINT - Two part urethane primer, two part urethane topcoat – Factory standard

color(s).

Options:

Side Delivery Conveyor – 24” x 12’ with hydraulic fold for travel (*******Add $18,000********)

Magnet Permanent crossbelt magnet

Extended End Delivery Conveyor to 44’ with 12’2” discharge under head end with

hydraulic fold for travel vs. std. 40’

Modernized Jaw with Tramp Iron Relief (TIR) System in lieu of wedge adjust. TIR

controlled with a (PLC/HMI) powered by 24V DC 10 amps. (NOTE: Set jaw crusher

close side setting with TIR cylinders fully retracted for shipment).

;
