2023 METSO HP200E

Description

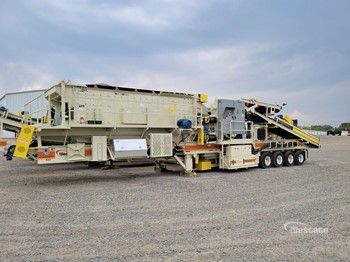

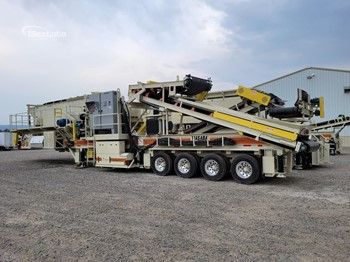

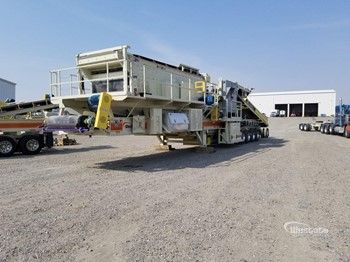

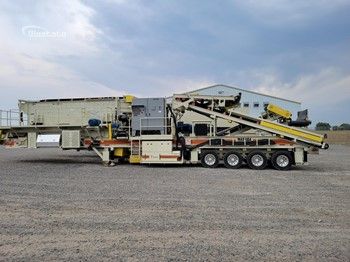

Metso HP200E Close Circuit Plant

HP 200E CONE:

200 HP 1200 RPM Cone Motor.

Hydraulic adjust underload

80% Pass the closed side setting

Multiple Liner Configurations

JCI Screen

6x20 3 Deck Screen

40 HP 1200 RPM TEFC

Triple Shaft

4 Axle Carrier

Four axle straight frame constructed of heavy duty wide flange beam

Booster connection on rear of plant provided by Masaba

Heavy duty spring suspension w/ (16) 11R x 22.5 radial tires

8 Hp electric start Honda gas power unit with hydraulic reservoir

Qty (4) lift only hydraulic jacks

Qty (2) swing down stiff legs near kingpin end of chassis

Qty (4) cribbing points at each corner of cone. (4) cribbing points at lift cylinder locations

Brake and Light Package

Diamond decked catwalk, access ladders and railing

Chord holder

42” Under Cone Conveyor

15hp TEFC Motor

3Ply Belt with Belt Wiper

Dodge #4 gear box

Impact Idlers in loading area

42” Over Cone Conveyor

15hp TEFC Motor

3Ply Belt with Belt Wiper

Dodge #4 gear box

Impact Idlers in loading area

Hydraulic Fold for Liner changes

42” Over Screen Conveyor

15hp TEFC Motor

3Ply Belt with Belt Wiper

Dodge #4 gear box

Impact Idlers in loading area

60” Under Screen Conveyor

15hp TEFC Motor

2Ply Belt with Belt Wiper

Dodge #3 gear box

18” Cross Conveyors for bottom deck of screen 7.5 hp

18” Cross Conveyors for center deck of screen 7.5hp

36” Cross Conveyor to Close the Circuit 5hp

Top deck always to cone

Center deck overs to cone or cross conveyor

Bottom deck overs to cross conveyor or combine with bottom deck throughs via flop gates

Electrical Starters and Controls
