2023 METSO HP300

Description

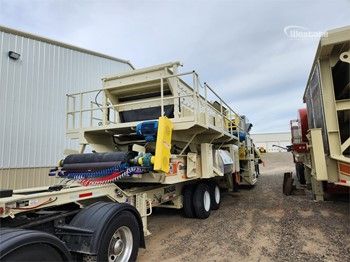

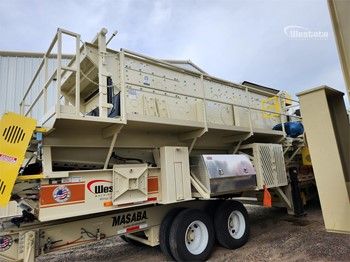

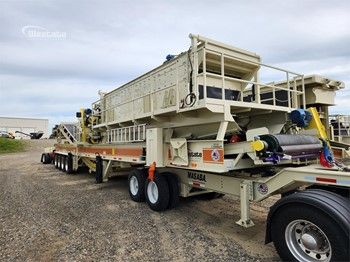

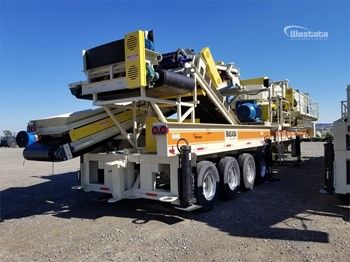

Metso (Nordberg) HP 300 Closed Circuit Plant with 6x20 Screen

Metso HP300 Cone

• 300 HP 1200 RPM Cone Motor

• Hydraulic adjust underload

• 80% Pass the closed side setting

• Multiple Liner Configurations

JCI 6x20 Screen

• 6x20 3 Deck Screen

• 40 HP 1200 RPM TEFC.

4 Axle Carrier

• Four axle straight frame constructed of heavy duty wide flange beam

• Booster connection on rear of plant provided by Masaba

• Heavy duty spring suspension w/ (16) 11R x 22.5 radial tires

• 8 Hp electric start Honda gas power unit with hydraulic reservoir

• Qty (6) "Run On" hydraulic jacks

• Qty (2) swing down stiff legs near kingpin end of chassis

• Qty (4) cribbing points at each corner of cone. (4) cribbing points at lift cylinder locations

• Brake and Light Package

• Diamond decked catwalk, access ladders and railing

• Chord holder

42” Under Cone Conveyor

• 15hp TEFC Motor

• 3Ply Belt with Belt Wiper

• Dodge #4 gear box

• Impact Idlers in loading area

42” Over Cone Conveyor

• 15hp TEFC Motor

• 3Ply Belt with Belt Wiper

• Dodge #4 gear box

• Impact Idlers in loading area

• Hydraulic Fold for Liner changes

42” Over Screen Conveyor

• 15hp TEFC Motor

• 3Ply Belt with Belt Wiper

• Dodge #4 gear box

• Impact Idlers in loading area

60” Under Screen Conveyor

• 15hp TEFC Motor

• 2Ply Belt with Belt Wiper

• Dodge #3 gear box

24” Cross Conveyors for bottom deck of screen 7.5 hp

18” Cross Conveyors for center deck of screen 7.5hp

36” Cross Conveyor to Close the Circuit 5hp

Top deck always to cone

Center deck overs to cone or cross conveyor

Bottom deck overs to cross conveyor or combine with bottom deck throughs via flop gates

Electrical Starters and Controls
