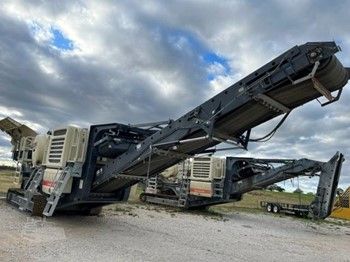

2023 METSO LT106

Description

General

Configurable product LT106

Delivery project type Standard

Final destination country USA

Feeding Unit

Feeder Grizzly feeder for LT106

Hydraulic driven horizontal feeder to maximize the overall production through the efficient removal of fines from the feed material. The vibrating feeder is equipped with 2 grizzly sections.

Adjustable vibrating feeder equipped with two grizzly sections. Widely used solution for various crushing processes.

1st Grizzly Grizzly spacing 52 mm (2")

2nd Grizzly Grizzly spacing 52 mm (2")

Screen deck media Steel cloth 35 mm (1 3/8")

Feed hopper Extended 9 m³ (12 yd³)

Increases the volume of the standard feed hopper.

By-pass chute Included

Guides the fine materials from the feed material to the main conveyor or side conveyor. Material flow can be splitted also with screen mesh under the grizzlies.

Side conveyor Included

Belt conveyor for transporting the fine material to the side of the Lokotrack. The side conveyor is equipped with hydraulic drive and stop buttons both sides of the conveyor.

Crusher

Crusher Jaw crusher C106

Primary jaw crusher with bolted and pinned construction. One of the most important Nordberg C106 features is a aggressive long stroke with effective direction which ensures an outstanding performance in any application.Features such as protection plates behind the jaw dies, replaceable toe wedges just to mention a few are standard features and those guarantee that the C106 is easy and economical to maintain over the long lifetime of the crusher.Special tools for safe and easy operation and maintenance, such as lifting tools for jaw dies, cheek plates and toggle plate, are part of standard scope of supply.

Jaw profile Standard

Setting adjustment Hydraulic setting adjustment

Automatic lubrication unit Included

Automates the lubrication of the eccentric shaft bearings of the jaw crusher to ensure sufficient lubrication.

Material level control Included

An analog vertically mounted ultra sonic sensor to control the material level in the crusher cavity.

Belt protection plate Included

On the fixed jaw side a plate is mounted to guide the crushed recycling material together with steel parts onto the main conveyor and to protect the belt conveyor.

Power Unit

Diesel engine CAT C7.1

Highly powerful and fuel efficient diesel engine.

High performance, fuel efficient and turbocharged six-cylinder diesel engine with 7 liter displacement and common-rail fuel system. Power 225 kW @1800 rpm.

Emission class Tier 4F

Tier 4 Final (stage 4) emission regulated engine

Climate kit Standard (-20C/-4F...35C/95F)

Main Conveyor

Main conveyor LT106 Extended

Belt conveyor for transporting the crushed material from the crusher to the discharge point. The conveyor is equipped with hydraulic drive and emergency stop wires on both sides of the conveyor.

Magnetic separator Included

Permanent magnet to remove the iron waste from the crushed material.

Optional Equipment

Interlocking Included

With Lokotrack interlocking solution operators crushing and screening process can be adjusted as Lokotrack automation systems are connected. Primary units feeder automatically slows down, pauses or stops if secondary units crushing or screening process is either paused or stopped.

Lokotrack is equipped with interlocking readiness and interlocking cable is delivered loose together with the unit. Operator plugs cable between Lokotrack units at the site.

Hydraulic power take off PTO 1

For connecting the auxiliary hydraulic equipment to the hydraulic system of the Lokotrack.

Hydraulic generator 10 kVA (UK/USA, 60 Hz)

Electricity for service and maintenance tools

Water spraying system With hydraulic pump

For binding dust particles at the crusher cavity, under the crusher and at the discharge end of main conveyor.

Jaw maintenance platform Included

Lightweight, adjustable and easy to handle maintenance platform(s) for making the jaw liner and cheek plate changes easier and safer.

Remote radio control Included (US / 458MHz)

Operator can monitor LT main functions with remote control; start and stop feeder, adjust diesel engine rotation speed and move LT forward and reverse. Remote control is radio frequency operated and there are three radio frequencies available in Please contact Metso:Outotec Order Office for other radio frequencies. Please note when LT is equipped with Hydraulic Breaker, both remote control for hammer and remote control for LT use same radio frequency.

Metso Outotec Metrics Included

Metso Outotec Metrics is a remote fleet monitoring system consisting cellular gateway and antenna. It allows 24/7 online access to equipment performance monitoring and services. System is automatically activated and connected to M:O Services.

Finishing

Color Metso beige

Safety labels ANSI

Display unit language English

Please choose the final working location (country/area) of the unit.

Documentation

Lang. for electronic manual English

Quantity of printed manuals 2

Lang. for 1st printed manual English

Lang. for 2nd printed manual English

Electronic spare part book Included

Quantity of spare part books 2

Lang. for 1st spare part book English

Lang. for 2nd spare part book English
