2023 SANDVIK UH373

Description

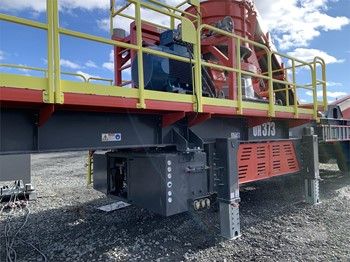

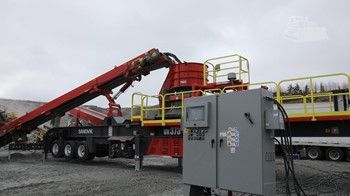

NEW Sandvik UH373 Portable Cone Plant (Sandvik CH440 Cone) (Rear Feed – Rear Discharge)

To include the following:

• • Chassis fabricated from a combination of heavy-duty wide flange beam and structural tube

• • Triple axel suspension with (12) 1100 x 22.5 tires, air brakes, lights, and mud flaps

• • 5th wheel kingpin

• • (6) Hydraulic lift legs with gas hydraulic power unit, cylinders, valves, hoses, and fittings

• • Crusher overflow/bypass chute fabricated from A36 plate steel with AR400 bolt-in liners

• • Crusher discharge chute fabricated from A36 plate steel with AR400 bolt-in liner

• • Walkway around the base of the crusher fabricated from structural channel and angle with 19w4

galvanized bar grating, handrails, and ladder access

• • Cone inspection platform fabricated from structural channel and angle with 19w4 galvanized bar grating,

handrails, and ladder access

• • Custom HPU using Sandvik-supplied components

• • 48” Rear Feed Conveyor: o Channel frame design

• o Hydraulic head-end fold for road transport

• o Hydraulic pivot frame assembly for road transport

• o Dodge size 4 MTA reducer with a 15 HP, 1800 RPM motor

• o 16” diameter drum-type head pulley with 3/8” herringbone lagging on a TG&P shaf

• o 14” diameter wing-type tail pulley on a TG&P shaft

• o Dodge S2000 bearings

• o Impact Bed in loading area

• o CEMA C5 idlers

• o 3-ply, 330#, 3/16” x 1/16”, Grade 2 belting, skived and laced with mechanical fasteners

• o Martin Pit Viper primary belt cleaner

• o Receiving hopper with adjustable rubber flashing

• o Screw-type take-ups

• • 48” Rear Discharge Conveyor: o Channel frame design

• o Dodge size 4 MTA reducer with a 15 HP, 1800 RPM motor

• o 16” diameter drum-type head pulley with 3/8” herringbone lagging on a TG&P shaft

• o 14” diameter wing-type tail pulley on a TG&P shaft

• o Dodge S2000 bearings

• o Impact Bed in loading area

• o CEMA C5 idlers

• o 3-ply, 330#, 3/16” x 1/16”, Grade 2 belting, skived and laced with mechanical fasteners

• o Martin Pit Viper primary belt cleaner

• o Receiving hopper/skirtboard extension with adjustable rubber flashing

• o Screw-type take-ups

• • Electric Switchgear: o soft start for cone crusher

• o Starters for conveyors, cone hydraulics, cone lube system, and cone oil cooler

• o Control circuit wired for the cone ASRI system

• o Nema 4 enclosure, main breaker with handle, illuminated e-stop, push/pull buttons, hour meter, and

alarm

• o Wiring with quick-connect plugs from the switchgear to the on-plant motors (Note: Switchgear is

removable with 50’ of cord from the panel to the plant)

• o UL Listed

• • Guarding: o Tail pulleys, V-belt drives, and all pinch points

• • Finish: o Sandblast paint prep

• o Lift Legs – Galvanized

• o All Other Steel – (1 coat) epoxy primer and (1 coat) urethane topcoat – Sandvik color combination

Included: On Plant

• • Sandvik CH440 Cone Crusher and motor
