2023 SUPERIOR F2636J3617VGFCP

Description

Plant Specifications

Construction Main frame constructed of wide flange structural

beams

Crusher Feed Box Constructed of 3/4" MS plate with 1/2" AR 400

weld-in liner

Crusher Discharge Chute Mild steel construction with AR liners in wear

areas

Discharge Chute Skirting Replaceable 60 durometer skirt board

rubber with clamp bars where required

Feed Hopper Cartridge Not applicable

Feed Hopper Constructed of 3/4" AR400 wear plate with

reinforced steel and sloped sidewalls, includes

exterior side panels fitted with conveyor belt

rubber to prevent access to VGF and assist in

keeping debris or foreign material from entering

the area

Hopper Wings Manually folding extending hopper wings for

increased hopper capacity, includes bolt on

hinges and supports. Must be removed for road

travel.

Grizzly Fines Chute Constructed of 1/4" A36 plate with 1/4" AR400

weld-in liner

Fines Chute Access Door Hinged side access door

Fines Chute Skirting Replaceable 60 durometer skirt board rubber with

clamp bars where required

Walkway Platform(s) Lower crusher observation and maintenance

platform and upper crusher observation platform

Walkway Access Steep angle stair both sides of plant and stair

access from lower platform to upper platform

Access Gates Self closing hinged gates at all walkway access points

Grease Package Remote grease station, multiple grease points outside of

chassis frame

Tool Box Aluminum tool box

Cord Holders Round pipe with end disc style cord holders welded to

chassis frame

Paint Standard Superior paint - Graphite Gray (RAL 7024) chassis, Window Gray [RAL 7040] Jaw and VGF, Superior Orange guardrails and guarding

Guarding For all drive and tail pulleys, guards may not meet all local codes; customer is responsible to have guarding inspected

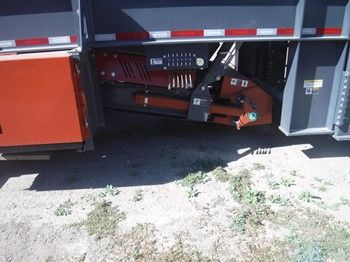

Chassis Specifications

Axle Tridem axle with (12) 11Rx22.5 radial tires

Suspension Spring suspension

Brakes Complete air brake package

Fifth Wheel Included

Lights Brake and directional signals

Mud Flaps Installed behind transport wheels

Cribbing Legs (6) fixed structural steel cribbing legs

Landing Gear (6) hydraulic Run-on leveling legs with 9 HP Honda Power Unit

Tow Eye Not included

Level Assist Not included

Booster Axle Not included or equipped to accept a booster. Please consult Superior if a booster is required now or in the future

Discharge Conveyor

Belt Width 42" discharge conveyor

Conveyor Orientation Front Discharge (conveyor discharges over

kingpin)

Conveyor Support Fixed height discharge

Conveyor Fold Not included

Conveyor Construction Structural steel channel frame

Drive Class I head end

Gear Reducer Shaft mount

Motor 20 HP motor TEFC

Belt Speed 300 FPM

Capacity 500 STPH of 100 PCF material

Drive Pulley 16" diameter, 3/8" herringbone lagged CEMA crown faced

drum

Tail Pulley 12" diameter CEMA Chevron® wing pulley

Bearings Included

Load Area CEMA C, 5" dia. impact rolls, 12" spacing

Trough Idlers CEMA C, 5" dia. steel rolls troughing idlers

Returns CEMA C, 5" dia. steel rolls on 10' spacing

Belting 3 ply 1/4 x 1/16 330 PIW

Belt Splice Factory vulcanized belt splice

Belt Scraper Superior Exterra® Primary Scraper

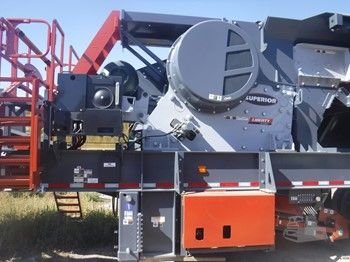

Jaw Specifications

Jaw Size Liberty 2636 Bolted Frame Jaw

Jaw Drive 100 HP TEFC Crusher Duty Motor

Operating Speed 300 RPM

Capacity Range 120-395 STPH (110-360 MTPH)

Nominal Feed Opening (tip to tip) 26" x 36" (660mm x 900mm)

Closed Side Setting 2.4" - 6.3" (60mm - 160mm)

Max Feed Size 19.2" (488mm)

V-Belt Drive 6 groove 8V-belt with drive guard

Flywheel Guards Drive and non-drive side flywheel guards included

Jaw dies Bellied and filled ends, 18% Manganese pitman and stationary jaw dies with lifting eyes built in lifting eyes

Setting Adj. and HPU Package Hydraulic wedge adjustment with control package. Includes tank, controls for CSS setting adjustment and hydraulic tension pressure, pressure sensor, and accumulator

Tension system Automatic hydraulic over spring tension system

Auto grease System Not included

Bearing Sensors Not included

VGF Specifications

VGF Size Intrepid® 36" x 17' Vibrating Grizzly Feeder

VGF Motor 20 HP TEFC

VGF V-Belt Drive with drive guard

Pan Liner Replaceable 1/2" thick AR liners

Grizzly Horizontal (0°) single 4' tapered bar

Springs Outboard spring mount arrangement

Grizzly Spacing 3" nominal opening

Electrical Specifications

Voltage 460 v / 3 ph / 60 hz

Control Panel Not included

Options:

Hopper Wings Manually folding extended hopper wings for increased hopper capacity, includes bolt on hinges and supports, must be removed for road travel

Hydraulic Run-On Legs Hydraulic Run-on leveling legs with 9 HP Honda Power Unit

Lower Observation Platform Observation/service platform for access to the jaw auxiliary systems

Upper Observation Platform Upper observation platform for viewing into the jaw, includes access from lower platform

Self Closing Hinged Gate Self closing hinged gates at all walkway access points in lieu of sasfety chain

Steep Angle Stairs Folding steep angle stairs for access to walkway

Grease Stations Remote grease station, multiple grease points outside of chassis frame

Tool Box Aluminum tool box

Cord Holders Round pipe with end disc style cord holders welded to chassis frame

Primary Scraper* Superior Exterra Primary Scrapers

Vulcanized Splice* Factory vulcanized belt splice on conveyors

Bellied and Filled End Liners Bellied and filled ends, 18% Manganese pitman and stationary jaw dies with lifting eyes built in lifting eyes

3" Bar Opening 3" nominal opening
