2023 TELSMITH H3450

Description

Item 1

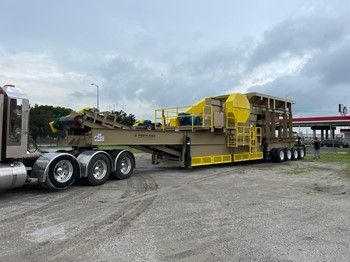

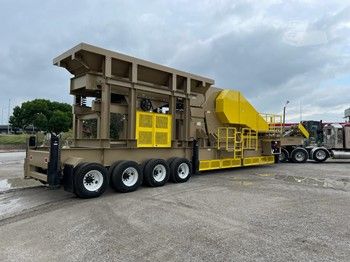

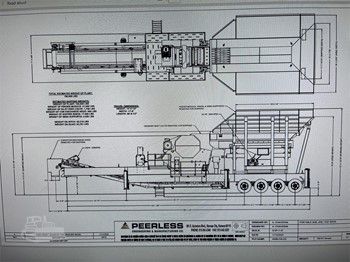

Pit Portable Jaw H3450 Primary Plant:

• Items required from Dealer:

H 3450 Jaw Crusher: including crusher drives sheave and drives

• Telsmith H3450 Hydra-Jaw® Jaw Crusher with all standard features including:

• MAINFRAME - One-piece fabricated and stress relieved frame with flanged bearing

• housings, hydraulic relief/adjusting toggle cylinder, central grease point, AR

• steel cheek plates

• SWING JAW - Cast steel pitman, replaceable swing jaw hub protector, spherical

• swing jaw and main frame bearings, flywheel and drive sheave

• HYDRAULIC SYSTEM - 7.5HP pump, 30gal reservoir, display panel with push button

• controls for crusher setting adjustment (Fluids not included)

• - Basic tool kit

• - Jaw dies: 14% manganese, round tooth profile

• - Right hand drive

• - Configured for operating between 0-104°F and less than 3300 FASL

• - Electrical controls: Pre-wired for 460V

• - Nameplates: English/Spanish

• - Paint: One coat primer, one coat Beige acrylic

KPI 5020 VGF

• PIONEER VIBRATING FEEDER 50" X 20' HORIZONTAL TYPE TO INCLUDE:

• Vibrator Mechanism - with two shafts, bearings, timing gears, and driven sheave

• 5' Adjustable and Replaceable Grizzly Bar Section

• Suspension Springs. Cups and Brackets

• Separate "pivoted-type" Motor Mount

• Less Support Frame - Less Drive - Less Hopper- Less Power

• Paint - Two-part urethane primer, two part urethane topcoat – Factory standard

• color(s).:

• Pan Deck Liners - 3/4" Mild Steel Liners

• Chassis:

- Main Frame: Heavy Duty I-beam construction.

- Suspension: Triple axle suspension.

- Tires: Twelve 11.00 X 22.5 tires mounted on 10-hole Budd wheels.

- Brakes: Air brakes on all axles.

- Cribbing: Six cribbing supports.

- Highway travel items: mud flaps and tail lights.

• Feeder Module:

- Feeder Hopper: 5/8” plate construction with 5/8”x8”x8” angle

- Feeder Support: Heavy duty W8x#31 I-beam construction.

- By-pass Chute: 3/8” plate construction. No conveyor.

- Hopper Wings: for wheel loader / excavator loading

• Feeder Drive:

- Motor: WEG 40HP 1800-RPM 440V 60Hz 286T TEFC.

- V-belt Drive: Motor sheave, v-belts and drive guard

• Crusher Area:

- Undercrusher Hopper: 3/8” & 1/2” plate construction.

- Lower Platform: access to the crusher drive area.

- Platforms Access: ladders.

• Crusher Drive:

- Motor: 200HP 1190 RPM TEFC

- Motor Base: Supplied

- V-belt Drive: Drive sheave and belts included

• 48”x34’ Front Delivery Conveyor:

- Drive: Class II head end.

- Gear Reducer: Dodge TAII Shaft Mount.

- Backstop: Included.

- Motor: 20HP 1800-RPM 440V 60Hz 254T TEFC.

- V-belt Drive: Dodge with drive guard

- Belt Speed: 350 fpm

- Drive Pulley: Heavy-Duty 14” diameter, 3/8” herringbone lagged drum.

- Tail Pulley: Heavy-Duty 12” diameter, wing type pulley.

- Shafts: 1045 turned and polished.

- Bearings: Dodge SCM Pillow Block.

- Take-ups: Telescopic Screw type.

- Belting: 3-ply 3/16” x 1/16 #330 PIW.

- Belt splice: Flexco.

- Idlers: CEMA B5” dia. 20 Deg sealed for life ball bearings.

- Impact Slide: Included

- Return: return idlers on 10’ spacing.

- Belt Cleaner: Martin Pit Viper belt cleaner with tensioner.

- Paint: 1 coat primer, 1 coat finish enamel painted KPI Tan.

• Optional Heavy- Duty Truck Frame Mounted Rock Feed Hopper

• Hopper Construction:

 Overall hopper dimensions are 18’ long by 18’ – 6” wide

- Two 18’ long lower sloped sidewalls

- Two 9’ long upper vertical sidewall extensions add an additional 3’ to hopper height

- Back wall sloped at 45 degrees tying the two lower and upper side wall extensions together

- Hopper construction is made of 5/8” thick steel plate

• Structure Construction:

- Six diagonal supports (3 on each side) tie hopper back to truck frame

- Two rear diagonal supports (one on each side) tie the rear hopper extension back the truck frame

- Bolt together construction

- 1 coat primer, 1 two-part urethane finish coat – KPI Tan

-

• Electrical Switchgear Package

- 480 Volt AC / 120V control

- Outdoor enclosure with 800AMP main, 2500HP soft start HD rated

- 40HP NEMA starter for VGF

- 20HP under crusher conveyor

- Panel mounted within 20’ of crusher frame
