2023 TEREX FINLAY C1540RS

Description

C- 1 5 4 0 R S

MACHINE WEIGHT:

51,120kg (112,700lbs) (With optional pre-screen, mid-grade transfer &

mid-grade stockpiling conveyor)

FEATURES:

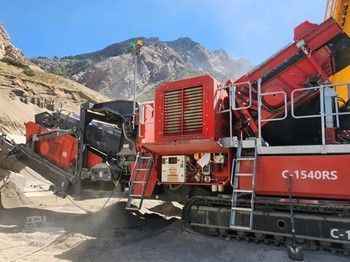

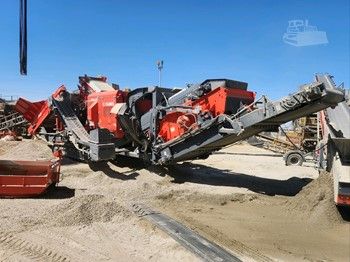

The Finlay® C-1540RS mobile cone crusher provides

the versatility of a crushing and screening plant on one

machine. Based on the Finlay C-1540 this machine

features an innovative on board recirculating system and

detachable sizing screen.

If re-circulation and sizing of materials is not required the

sizing screen can be quickly detached from the machine

without the need for lifting equipment.

Detachable 12’ x 5’ (3.66m x 1.52m) double deck sizing

screen passes oversize material back to the crusher via

the on-board recirculating conveyor.

Quick and easy detachable screen and fines conveyor for

open circuit crushing.

The optional mid-grade conveyor in conjunction with

the optional lower deck screen, produces a 2nd specific

product.

PRE-SCREEN SYSTEM

Top deck: 1.83m x 1.22m (6’ x 4’)

The pre-screen module will maximise production through the

cone by removing as much fine material as possible before it

enters the cone chamber. This will also reduce wear within the

cone chamber

CONE CHAMBER

Terex 1000mm (40”) cone chamber

Variable speed control settings for producing a quality aggregate

‘On the fly’ hydraulically adjustable closed side setting with monitoring

system

HOPPER/FEEDER

Hopper capacity: 5m³ (6.5yd³)

Hopper Width at rear: 2.45m (8’)

Hopper Width at rear with optional hopper extensions: 3.7m (12’ 2”)

Working Angle: 24° (Pre-screen feed), 21° (Direct feed)

Drop down rear door for auxiliary crusher feed

Crash bar fitted to reduce impact load on feed conveyor

FINES CONVEYOR

Belt width: 1.4m (55”)

Working Angle: 19° - 22°

Hydraulically folds for transport

Discharge Height: 3.0m (9’ 10”)

Stockpile capacity: 44.3m³ (58yd³) @ 40°

DETACHABLE SCREENBOX

Quick and easy detachable screen and fines conveyor for open

circuit crushing.

The optional stacking conveyor in conjunction with the optional

lower deck screen, produces a 2nd spec’d product.

Top deck: 3.66m x 1.53m (12’ x 5’)

Bottom deck: 3.05m x 1. 53m (10’ x 5’)

Total screening area: 10.1m² (110ft²)

Screen Angle: 19° - 22°

T-LINK TELEMATICS

T-Link telematics hardware and software along with free seven

year data subscription are fitted and installed as standard.

UNDERCARRIAGE

Shoe Width: 500mm (20”)

Tracking Speed: 0.9 km/h

Gradeability: 25°
