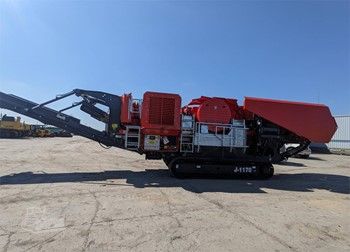

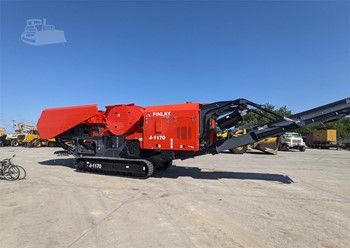

2023 TEREX FINLAY J1170HR

Description

ENGINE:

- TIER 4F/STAGE IV: SCANIA DC9 257KW (345 HP)

JAW CHAMBER:

- TEREX 1100 X 700MM (44" X 28" SINGLE TOGGLE JAW CRUSHER - HYDRAULIC RELEASE

- HYDROSTATIC DRIVE

- REVERSIBLE OPERATION FOR CLEARING BLOCKAGES

- S' TOOTH LINERS - 18% MANGANESE AS STANDARD

- HYDRAULIC DEFLECTOR PLATE

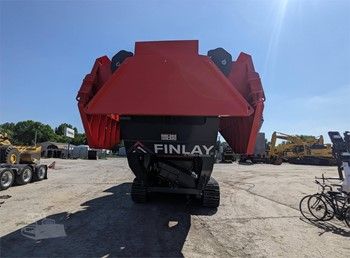

HOPPER/FEEDER:

- HYDRAULICALLY FOLDING HOPPER SIDES

- INTEGRATED PAN AND FEEDER - CASSETTE IS 75MM SPACING AS STANDARD

- MESH APERTURE ON GRIZZLY FEEDER IS 38MM

INDEPENDENT PRE-SCREEN:

- C/W BYPASS CONVEYOR WITH 650MM WIDE PLAIN BELT, 75MM CASSETT SPACING AND 38MM

MESH AS STANDARD - REQUIRES 1 AUX. DRIVE, IMPACTS TRANSPORT LENGTH

- EXTEND HOPPER FLARES

MAIN CONVEYOR:

- 1000MM WIDE MAIN BELT FITTED WITH IMPACT BARS AT FEED POINT

- HYDRAULIC RAISE/LOWER OF CONVEYOR

- MAIN CONVEYOR WITH RIGID/NON-FOLDING HEAD SECTION - 3.9M DISCHARGE

- RIP STOP BELT

AUXILIARY CONVEYORS:

- PIPED FOR OVERBAND MAGNET

- TWINPOLE OVERBAND MAGNET (SKIRTING & CHUTE AS ABOVE)

CLIMATE SPEC:

- STANDARD OILS - RECOMMENDED FOR AMBIENT TEMPERATURES BETWEEN -5 DEGREE TO +30

DEGREE C

DUST SUPPRESSION:

- PIPED FOR DUST SUPPRESSION COMPLETE WITH SPRAYBARS

- WATER PUMP NOT INCLUDED

ELECTRICAL:

- EMERGENCY STOPS

- HAND HELD TRACK CONTROL SET WITH CONNECTION LEAD

- T-LINK TELEMETRY SYSTEM

- RADIO REMOTE SYSTEM

- CONTROL PANEL POSITIVE AIR PRESSURISATION

GENERAL:

- SAFETY GUARDS IN COMPLIANCE WITH MACHINERY DIRECTIVE

- SEPARATE CENTRAL OPERATORS PANEL

- TWO SPEED TRACKS
