2024 ANACONDA I12R

Description

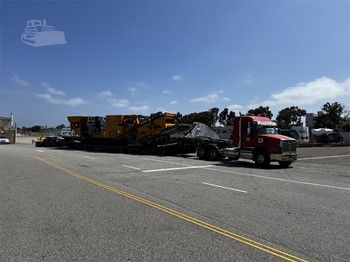

New Anaconda I12R Closed Circuit Track Mounted HSI

FEATURES:

Hopper…

• Width: 6’-8” (2.02m)

• Extension Width: 9’-11” (3.015m)

• Length: 14’-1” (4.3m)

• Max Volume: 8.5 cubic yards (6.5 cubic meters)

Feeder…

• Width: 43” (1.1m)

• Length: 14’ (4.2m)

• Control: Direct hydraulic, variable speed

• Speed Range: 400-945rpm

• Integrated Screen Deck 36” (920mm)

• Drive Motor: 64cc vibratory unit

Impact Chamber…

• McLanahan (Universal Engineering) 43” x 45” (1090x1040)

• Drive Motor: Direct hydraulic drive, Rotating case 535cc motor

• Primary Apron Range: 1” – 7-1/2” (25-190mm)

• Secondary Apron Range: 5/8” – 5” (15-125mm)

• Speed: 630 – 700 rpm

Main Conveyor…

• Width: 42” (1050mm)

• Speed: 328 – 410 FPM (100-125m/m)

• Motors: Dual drive OMV 630, OMV500

• Belt: EP630, ¼” top (4.6mm), 0.078” bottom cover (2mm)

• Discharge Height: 12’-5” (3.8m)

Side Conveyor…

• Width: 26” (650mm)

• Discharge Height: 5’-2” (1.57m)

• Drive Motor: OMT 315

• Speed: Variable 0-175 rpm

Magnet…

• Width: 30” (750mm)

• Type: Cleated belt

• Speed: Variable 0-128 rpm

• Discharge Side: Capable of being run in either direction

• Drive Motor: HM-2K 245

Recirculating Screenbox…

• Top Deck: 5’ x 12’ (3.66m x 1.52m)

• Bottom Deck: 5’ x 12’ (3.66m x 1.52m)

• Angle: 24ᵒ

• Drive Motor: MCC2208 or Equivalent

• Speed: 980 rpm

• Throw: 5/16” (8mm)

Fines Conveyor…

• Width: 55” (1400mm)

• Motors: Twin drive OMV 500

• Belt: EP630, ¼” top (4.6mm), 0.078” bottom cover (2mm)

• Discharge Height: 9’-10” (3m)

Oversize Transfer Conveyor…

• Width: 20” (500mm)

• Control: Variable speed

• Motors: Single OMT 400

• Speed: 126-142 rpm

Midsize Transfer Conveyor…

• Width: 20” (500mm)

• Control: Variable speed

• Motors: Single OMT 400

• Speed: 157-177 rpm

Return Conveyor…

• Width: 20” (500mm)

• Control: Variable speed

• Motors: Single OMT 400

• Speed: 126-142 rpm

Tracks…

• Width: 20” (500mm)

• Height: 32” (815mm)

• Sprocket Centers: 12’-7” (3840mm)

• Speed: 0.62 MPH (1 km/h)

Powerpack And Engine…

• Engine: CAT 9.3L Diesel, Stage 5

• Diesel Tank: 140 US gallon (116 gallon)

• Hydraulic Tank: 105 US gallon (88 gallon)

EXCLUDES: Freight, screen media or its installation, taxes, fees or permits.
