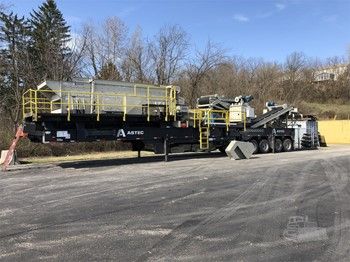

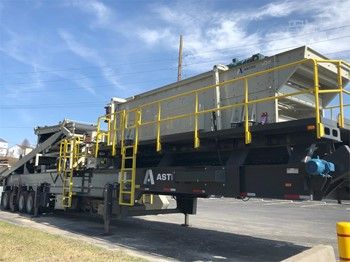

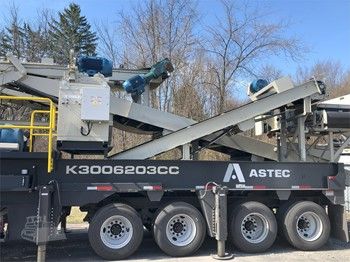

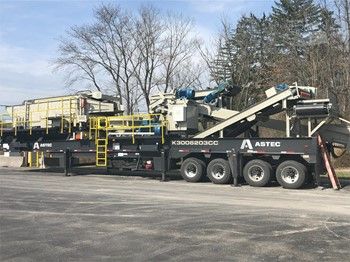

2024 ASTEC K300+6203CC

Description

Kodiak® Plus K300+ Cone

- High-efficiency roller bearing design

- Remote CSS adjustment

- Patented mechanical “crusher duty” cone brake

- Revolving wedge technology

- Patented liner retention system

- Low impact tramp iron relief system

- Permanently precision balanced

- Bronze field replaceable V-Seat liners

- Protected internal counter weights

- Baseframe tub liners field replaceable 400BHN

6203-32LP Screen

- 6’ x 20’ triple-deck horizontal screen

- Aggressive stroke triple-shaft horizontal

- Fully adjustable to fit most applications

- Feedbox / discharge lips with AR liners

- 40hp 1,200 RPM TEFC electric motor

- Rubber springs standard (coil optional)

- Pantleg blending chute with back-blend to underscreen

conveyor

Chassis

- Quad axle hutch suspension

- 24 x 55 WF frame beams

- Walkway, handrails, and ladders on both sides

- Six (6) stationary cribbing posts

- Two (2) pivoting cribbing posts for travel

- Diverter panels on middle deck discharge lip (can be

removed in 25% increments)

- Air brakes, lights, mud flaps and guards

Transfer Conveyor

- 36” x 16’ with Grade II, 330 3-ply belting

- 5hp 1,800 RPM TEFC electric motor

- Martin wiper

- Reversible for open-circuit operation

Overhead Feed Conveyor

- 42” x 65’ with Grade II, 330 3-ply belting

- 20hp 1,800 RPM TEFC electric motor

- Manually lowers for travel

- Martin wiper

Under Cone Conveyor

- 42” x 39’ with Grade II, 330 3-ply belting

- 15hp 1,800 RPM TEFC electric motor

- Martin wiper

Under Screen Conveyor

- 60” x 23’ with Grade II, 330 3-ply belting

- 10hp 1,800 RPM TEFC electric motor

- Martin wiper
